National Instruments sbRIO-9627 Embedded single-board controller

1 image: Click to enlarge

National Instruments · CompactRIO

sbRIO-9627

Name: sbRIO-9627
Brand: National Instruments

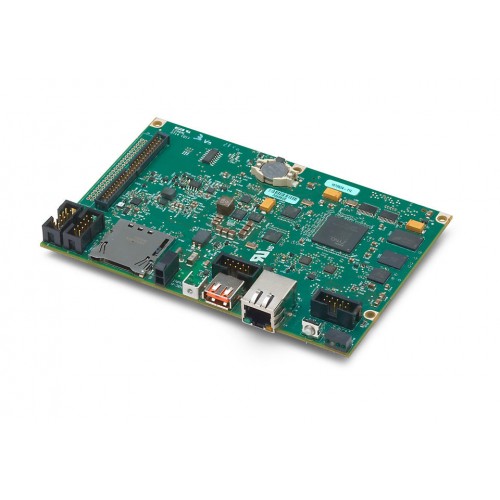

The NI sbRIO-9627 combines a real-time processor, reconfigurable FPGA, and analog and digital I/O on one circuit board. Its RIO Mezzanine Card connector supports expansion for embedded OEM systems.

ManufacturerNational Instruments

ModelsbRIO-9627

Part Number783817-01 · 783817-02

Product TypeEmbedded single-board controller

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: sbRIO-9627

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Processor667 MHz dual-core ARM Cortex-A9

FPGAXilinx Zynq-7020

Analog inputs16 single-ended or 8 differential, 16-bit

Analog outputs4 channels, 16-bit

Digital I/O96 RMC lines plus 4 IDC lines

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Designed for integration into OEM equipment, the sbRIO-9627 provides NI Linux Real-Time processing and user-programmable FPGA logic without a separate controller chassis.

Board-level integration requires attention to power, thermal design, and signal connections. Ethernet includes one front-panel interface and a second interface routed through the RMC connector.

Real-time processing and reconfigurable FPGA resources on a single PCB.
Selectable analog input ranges of ±10 V, ±5 V, ±2 V, and ±1 V.
Four analog outputs with a ±10 V range.
RMC expansion provides FPGA digital I/O and access to additional processor peripherals.

Verified specifications

Technical data

Verified product specifications.

Processor clock	667 MHz
Processor cores	2
Operating system	NI Linux Real-Time (32-bit)
DRAM	512 MB
Nonvolatile memory	512 nominal; formatted capacity may be lower MB
FPGA	Xilinx Zynq-7000 XC7Z020
Analog input configuration	16 single-ended or 8 differential channels
Analog input resolution	16 bit
Maximum aggregate analog input sampling rate	200 kS/s
Analog outputs	4 channels, 16-bit, ±10 V range
Digital I/O distribution	96 on RMC connector; 4 on 50-pin IDC connector; 3.3 V logic
Power supply voltage	9 to 30 VDC
Local ambient operating temperature	-40 to +85; thermal validation and component temperature limits apply °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO / Single-Board RIO

Embedded controller platform and family

sbRIO-9627

Single-board processor, FPGA, and I/O controller

Expansion

RIO Mezzanine Card connector

Confirm the exact part number and supplied accessories before planning integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI sbRIO-9627 Product PageProduct Page · ni.com

Open →

NI sbRIO-9627 SpecificationsSpecifications PDF · download.ni.com

Open →

NI sbRIO-9627 Getting Started GuideGetting-started Guide PDF · download.ni.com

Open →

sbRIO-9627 Dimensional DrawingsDrawings And CAD Resources · ni.com

Open →

Accessing Additional Serial Ports on the sbRIO RMC ConnectorTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How are the 100 digital I/O lines connected?

There are 96 digital I/O lines on the RMC connector and four on the 50-pin IDC connector. Both groups use 3.3 V logic.

Does the sbRIO-9627 have two onboard Ethernet connectors?

The specifications list one front-panel Ethernet interface, Eth0, and one RMC Ethernet interface, Eth1. Using the second interface requires an appropriate RMC implementation rather than a second onboard Ethernet connector.

What distinguishes the two manufacturer part numbers?

NI identifies 783817-01 as the development kit and 783817-02 as the OEM kit. This catalog record does not establish which kit or accessories accompany the individual unit.
