National Instruments sbRIO-9637 Single-board embedded controller

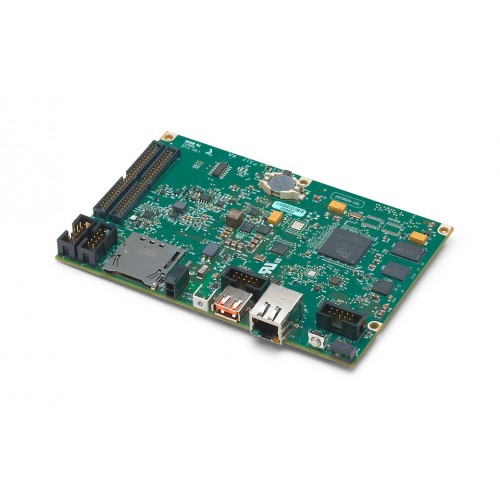

1 image: Click to enlarge

National Instruments · CompactRIO Single-Board

sbRIO-9637

Name: sbRIO-9637
Brand: National Instruments

The NI sbRIO-9637 combines an NI Linux Real-Time processor, a user-programmable FPGA and onboard analog and digital I/O on a single PCB for OEM embedded systems.

ManufacturerNational Instruments

ModelsbRIO-9637

Part Number783818-02 · 783818-01

Product TypeSingle-board embedded controller

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: sbRIO-9637

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Processor667 MHz dual-core ARM Cortex-A9

FPGAZynq-7020

Analog inputs16 single-ended or 8 differential; 16-bit

Analog outputs4 channels; 16-bit

Digital I/O28 lines; 3.3 V outputs and 5 V-tolerant inputs

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Designed for integration into OEM equipment, the sbRIO-9637 places real-time processing, reconfigurable logic and measurement I/O on one board rather than in a modular chassis.

The user manual covers board mounting, thermal management, system validation and connector pinouts. These integration details should be reviewed before designing an enclosure or external wiring.

512 MB DDR3 memory and 512 MB NAND flash.
Multiplexed analog inputs with independently programmable input ranges.
Two RS-232 ports and one RS-485 port for serial communication.
Onboard temperature sensors support thermal validation.

Verified specifications

Technical data

Verified product specifications.

Processor clock frequency	667; dual-core ARM Cortex-A9 MHz
FPGA	Zynq-7020
Memory	512 MB DDR3; 512 MB NAND flash
Analog input configuration	16 single-ended or 8 differential; 16-bit ADC
Maximum aggregate analog input sampling rate	200 kS/s
Analog input ranges	±10, ±5, ±2, ±1 V
Analog outputs	4 channels; 16-bit DAC; ±10 V range
Digital I/O	28 channels; 3.3 V outputs, 5 V-tolerant inputs
Supply voltage	9 to 30 VDC
Maximum power consumption	26 W
Local ambient operating temperature	-40 to 85; subject to thermal limits and system validation °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO Single-Board

Embedded controller platform

sbRIO-9637

Controller with integrated analog and digital I/O

Development environment

NI lists LabVIEW, LabVIEW Real-Time, LabVIEW FPGA and CompactRIO device drivers for programming this controller.

Validate mounting, cooling and wiring for the final system; do not assume RMC daughtercard connectivity.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI sbRIO-9637 Product PageProduct Page · ni.com

Open →

NI sbRIO-9637 SpecificationsSpecifications · download.ni.com

Open →

NI sbRIO-9637 User ManualUser Manual · download.ni.com

Open →

LabVIEW Software Needed for RIO Evaluation KitTechnical resource

Open →

Custom Board RMC Connections with sbRIO-9637Technical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the sbRIO-9637 include an RMC connector?

No preinstalled RMC connector is provided. NI identifies the sbRIO-9627 as better suited to custom daughtercards requiring an RMC connection.

Which software does NI list for programming the sbRIO-9637?

NI lists LabVIEW Development System, LabVIEW Real-Time Module, LabVIEW FPGA Module and CompactRIO device drivers. Its support article identifies LabVIEW 2015 as the minimum version; verify compatibility across the selected software and driver versions.
