National Instruments sbRIO-9607 CompactRIO Single-Board Controller

1 image: Click to enlarge

National Instruments · CompactRIO

sbRIO-9607

Name: sbRIO-9607
Brand: National Instruments

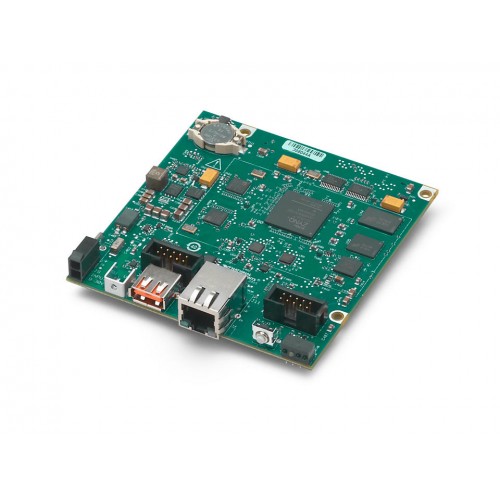

The NI sbRIO-9607 is an embedded CompactRIO single-board controller combining a real-time processor, reconfigurable FPGA, and digital I/O. Its RMC connector supports integration into custom OEM hardware.

ManufacturerNational Instruments

ModelsbRIO-9607

Part Number783816-01 · 783816-02

Product TypeCompactRIO Single-Board Controller

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: sbRIO-9607

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Processor667 MHz dual-core ARM Cortex-A9

FPGAXilinx Zynq-7020

Memory512 MB DRAM; 512 MB nonvolatile memory

Digital I/O96 channels, 3.3 V, on the RMC connector

Operating systemNI Linux Real-Time, 32-bit

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The sbRIO-9607 provides a board-level embedded control architecture for OEM integration. Its real-time processor and FPGA share a single PCB, with an RMC connector providing access to processor interfaces and FPGA digital I/O.

NI identifies this model as the digital-I/O member of the sbRIO-9607, sbRIO-9627, and sbRIO-9637 controller group. Unlike the multifunction models in that group, the sbRIO-9607 does not provide onboard analog inputs or analog outputs.

Combines real-time processing and user-reconfigurable FPGA logic on one board.
RMC connector exposes 96 FPGA-connected 3.3 V digital I/O channels.
Includes onboard Ethernet, RS-232, CAN, and USB interfaces.
FPGA resources include 85,000 logic cells, 220 DSP slices, and 16 DMA channels.

Verified specifications

Technical data

Verified product specifications.

Processor architecture	Dual-core ARM Cortex-A9
Processor clock	667 MHz
FPGA / SoC	Xilinx Zynq-7000 XC7Z020
DRAM	512 MB
Nonvolatile memory	512; formatted capacity may be slightly less MB
RMC digital I/O	96 channels at 3.3 V
Ethernet interfaces	1 onboard (Eth0), 1 through RMC (Eth1); 10/100/1000 Mbps
Operating system	NI Linux Real-Time (32-bit)

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO Single-Board Controllers

Embedded controller platform

sbRIO-9607

Digital-I/O controller with RMC expansion

Custom hardware interface

RMC provides processor interface access and FPGA digital I/O for mezzanine integration.

The second Ethernet interface is exposed through the RMC, not a second onboard connector. Revision C and earlier have a Gigabit Ethernet limitation below -20 °C; consult NI specifications.

Manuals & software
