National Instruments · PXI Express

PXIe-5667

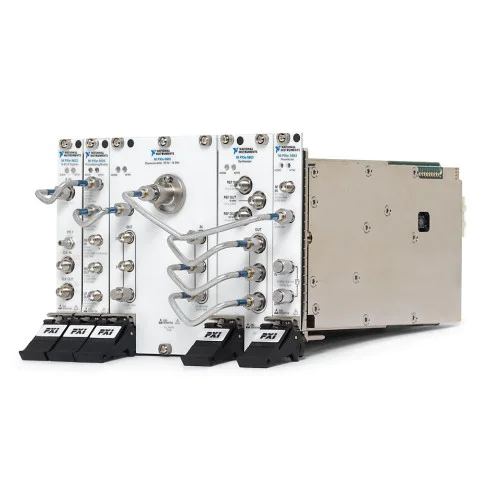

The NI PXIe-5667 is a modular PXI Express vector signal analyzer for spectrum monitoring. Its receiver architecture combines RF preselection, downconversion, local-oscillator generation, IF conditioning, and digitization.

ManufacturerNational Instruments

ModelPXIe-5667

Product TypeVector signal analyzer / spectrum monitoring receiver

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-5667

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Instrument typeVector signal analyzer and spectrum monitoring receiver

ArchitectureMulti-module PXI Express instrument

DigitizerPXIe-5622

SoftwareNI-RFSA driver and NI-RFSA Soft Front Panel support
