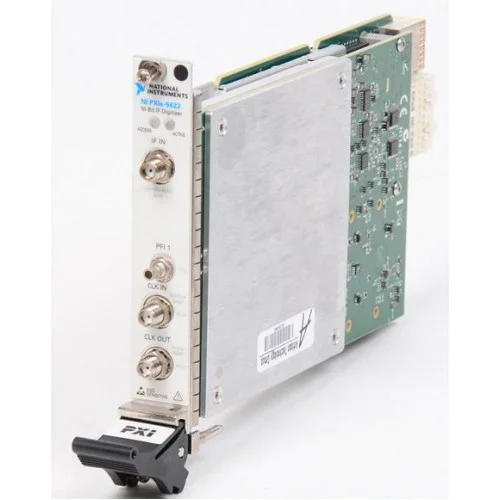

The National Instruments PXIe-5622 is a 16-bit, 150 MS/s IF digitizer with onboard signal processing for PXI Express systems.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PXIe-5622 digitizes intermediate-frequency signals and supports onboard quadrature digital downconversion. NI describes up to 60 MHz of IF bandwidth in this processing mode; the exact hardware variant must be checked before applying that maximum to an individual module.
NI also documents the PXIe-5622 as the IF digitizer within PXIe-5665 modular vector signal analyzer configurations.
Verified product specifications.
| Sampling rate | 150 MS/s |
|---|---|
| Resolution | 16 bit |
| IF input connector | SMA |
| Digital trigger connector | PFI 1: SMB |
| Clock connectors | CLK IN and CLK OUT: SMA |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Modular instrumentation platform
IF digitizer module
Requires a PXI Express chassis and controller.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
NI documents NI-SCOPE as the instrument driver for programming the PXIe-5622.
No. NI lists 64 MB and 256 MB assembly variants, including variants explicitly designated with 25 MHz bandwidth. This record does not identify the installed variant.
