National Instruments PXIe-5665 Vector signal analyzer

1 image: Click to enlarge

National Instruments · PXI Express

PXIe-5665

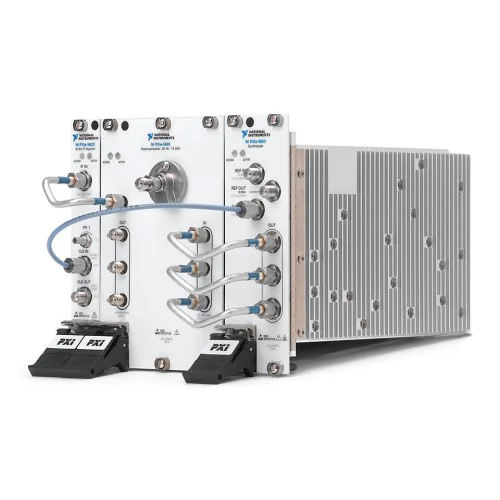

The National Instruments PXIe-5665 is a modular PXI Express vector signal analyzer combining RF downconversion, a local oscillator, and IF digitization. The exact frequency, bandwidth, and memory configuration of this catalog record requires confirmation.

ManufacturerNational Instruments

ModelPXIe-5665

Product TypeVector signal analyzer

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-5665

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Instrument typeVector signal analyzer

PlatformPXI Express

ArchitectureMulti-module instrument, not a single module

IF digitizerPXIe-5622
