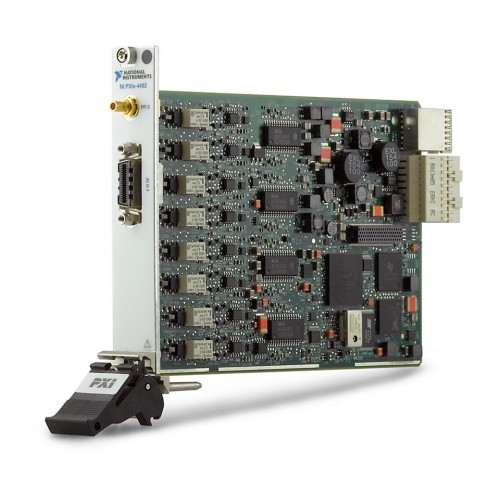

The NI PXIe-4492 acquires eight sound and vibration inputs simultaneously. It includes IEPE sensor excitation and TEDS support.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Designed for microphone and accelerometer measurements, the PXIe-4492 combines acquisition and IEPE signal conditioning in a PXI Express module.
Verified product specifications.
| Analog input channels | 8, simultaneously sampled |
|---|---|
| Input configuration | Pseudodifferential |
| ADC resolution | 24 bit |
| Sample rate range | 100 S/s to 204.8 kS/s |
| Input coupling | AC/DC, selectable per channel |
| Gain settings | 0, 20 dB |
| Full-scale input ranges | ±10 at 0 dB; ±1 at 20 dB Vpk |
| AC coupling cutoff, −3 dB | 0.5 Hz |
| IEPE excitation | 0 or 4, software selectable per channel; ±10% current tolerance mA |
| Analog input connector | InfiniBand 4x |
| PFI 0 trigger connector | SMB |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Platform
Acquisition module
Supports TEDS smart sensors.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
Yes. All eight channels support simultaneous sampling.
Yes. It provides selectable IEPE excitation for compatible microphones and accelerometers.
