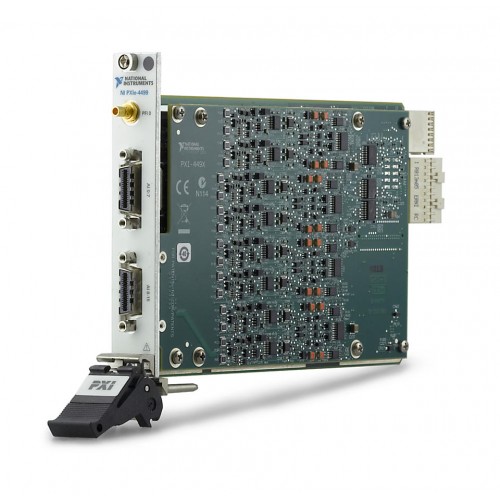

NI (National Instruments) PXIe-4499 204.8 kS/s, 114 dB, 4 Gains, AC/DC-Coupled, 16-Input PXI Sound and Vibration Module
1 image: Click to enlarge
NI (National Instruments) · PXI Express

PXIe-4499

The NI PXIe-4499 is a 16-input PXI Express sound and vibration module with simultaneous sampling, a maximum sample rate of 204.8 kS/s and 114 dB dynamic range. It provides four gain settings, AC/DC coupling and 4 mA IEPE excitation.

ManufacturerNI (National Instruments)
ModelPXIe-4499
Part Number789566-01
Product Type204.8 kS/s, 114 dB, 4 Gains, AC/DC-Coupled, 16-Input PXI Sound and Vibration Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-4499

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Max Differential Analog Input Channels16
Bus ConnectionPXI Express
Analog Input CouplingAC/DC
Number of Gain Settings4
Highpass Filter Cut-Off Frequency0.5 Hz
Front Connection TypeInfiniBand (IB), SMB
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-4499 measures voltage through 16 analog input channels with simultaneous sampling. It fits into the NI PXI Express platform for multichannel sound and vibration acquisition.

Four selectable gain settings provide input ranges from ±0.316 V to ±10 V. AC/DC coupling and 4 mA IEPE excitation support measurements using IEPE sensors, accelerometers and microphones.

  • 16 simultaneous analog input channels for multichannel acquisition.
  • Maximum sample rate of 204.8 kS/s and 114 dB DSA dynamic range.
  • Four input ranges: ±0.316 V, ±1 V, ±3.16 V and ±10 V.
  • AC/DC input coupling with a listed highpass filter cutoff frequency of 0.5 Hz.
  • 4 mA IEPE excitation for supported sensors, including accelerometers and microphones.
Verified specifications

Technical data

Verified product specifications.

Maximum Number of Differential Analog Input Channels16
Bus ConnectionPXI Express
Analog Input CouplingAC/DC
Number of Gain Settings4
Highpass Filter Cut-Off Frequency0.5 Hz
Front Connection TypeInfiniBand (IB), SMB
Maximum Sample Rate204.8 kS/s
DSA Dynamic Range114 dB
Number of Analog Input Channels16
Analog Input Voltage Range-0.316 V to 0.316 V -1 V to 1 V -3.16 V to 3.16 V -10 V to 10 V
Simultaneous SamplingYes
Operating Temperature Range0 °C to 55 °C
Analog Input IsolationNone
Electrical Signal MeasuredVoltage
IEPE Excitation4 mA
Supported Sensor TypeIEPE, Accelerometer, Microphone
NI part numbers789566-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI Express

Bus Connection

PXIe-4499

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Specifications (NI)Specifications · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI part number for the PXIe-4499?

The supplied verified catalog data lists NI part number 789566-01.

Does the PXIe-4499 sample all input channels simultaneously?

Yes. The module has 16 analog input channels and supports simultaneous sampling, with a listed maximum sample rate of 204.8 kS/s.

Does the PXIe-4499 support IEPE sensors?

Yes. It provides 4 mA IEPE excitation and lists IEPE sensors, accelerometers and microphones among its supported sensor types.
