PXI-7854R

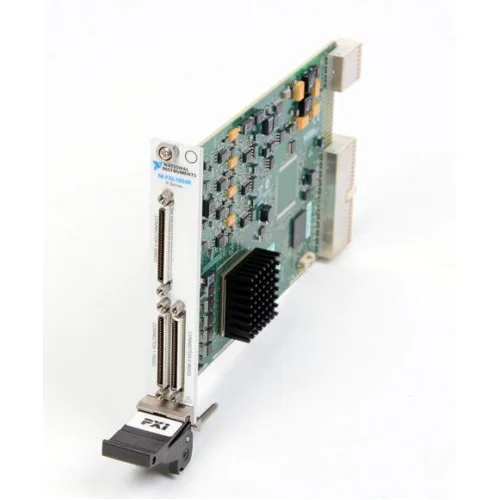

The National Instruments PXI-7854R is an R Series multifunction reconfigurable I/O module with a Virtex-5 LX110 FPGA, eight analog inputs, eight analog outputs and 96 digital I/O lines. Its user-programmable FPGA provides application-defined timing, synchronization and onboard processing.

ManufacturerNational Instruments

ModelPXI-7854R

Part Number780342-01

Product TypeMultifunction Reconfigurable I/O Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-7854R

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

FPGAVirtex-5 LX110

Analog input8 channels, 16-bit, up to 750 kS/s per channel

Analog output8 channels, 16-bit, up to 1 MS/s

Analog voltage ranges±10 V input and output

Digital I/O96 bidirectional lines

FPGA developmentLabVIEW FPGA Module

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-7854R combines analog acquisition, voltage generation and digital I/O with FPGA-based control. A dedicated ADC on each input supports independent timing and triggering, including multirate acquisition and individual channel triggering.

Unlike fixed-function DAQ hardware, R Series devices allow the application to define I/O behavior in the FPGA. Digital lines can implement counters, PWM, encoder interfaces or digital communication protocols. FPGA development uses the LabVIEW FPGA Module; R Series devices use NI-RIO rather than NI-DAQmx.

User-programmable Virtex-5 LX110 FPGA for onboard processing and direct I/O control.
Dedicated ADC per input for independent channel timing and triggering.
Configurable digital functions including counters, PWM, encoder interfaces and communication protocols.
Three DMA channels for host data transfer.

Verified specifications

Technical data

Verified product specifications.

FPGA	Virtex-5 LX110
Analog input channels	8 channels
Analog input resolution	16 bits
Maximum analog input sampling rate	750 per channel kS/s
Analog input range	±10 V
Analog input modes	DIFF, RSE, NRSE; selection applies to all channels
Analog output channels	8 channels
Analog output resolution	16 bits
Maximum analog output update rate	1 MS/s
Analog output range	±10 V
Bidirectional digital channels	96 channels
Maximum clock rate	40 MHz
DMA channels	3 channels
I/O connectors	Three 68-pin female high-density VHDCI connectors

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-7854R

R Series FPGA-based multifunction I/O module

Development software

LabVIEW FPGA Module

Select cables and terminal-block pinouts specifically for the PXI-7854R; R Series accessory wiring varies by model and connector.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PXI-7854 Official Product PageProduct Page · ni.com

Open →

NI R Series Multifunction RIO SpecificationsSpecifications PDF · download.ni.com

Open →

NI 78xx Models: R Series Cable and Accessory CompatibilityAccessory Compatibility Guide · ni.com

Open →

NI Multifunction RIO Frequently Asked QuestionsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is NI's PXI-7854 product page relevant to the PXI-7854R?

Yes. NI's PXI-7854 page explicitly identifies part number 780342-01 as the PXI-7854R R Series multifunction module with a Virtex-5 LX110 FPGA.

Can the PXI-7854R be programmed using NI-DAQmx?

No. R Series multifunction RIO devices use NI-RIO and are not compatible with NI-DAQmx or NI-DAQmx Base. Programming the FPGA requires the LabVIEW FPGA Module.

Which cables are specified for the analog and digital connectors?

NI lists the SHC68-68-RMIO cable for multifunction I/O and the SHC68-68-RDIO cable for digital I/O. SCB-68 or SCB-68A terminal blocks are listed, but the correct R Series pinout must be used.
