National Instruments · PXI

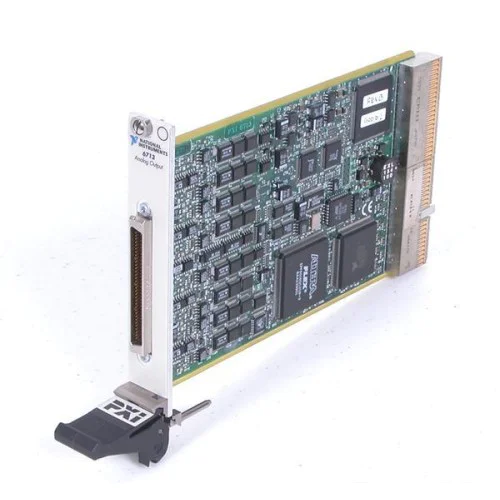

PXI-6713

The National Instruments PXI-6713 provides eight 12-bit voltage output channels for simultaneous multichannel waveform generation and control. It also includes eight digital I/O lines and two 24-bit counter/timers.

ManufacturerNational Instruments

ModelPXI-6713

Part Number185860-01 · 777795-01

Product TypePXI Analog Output Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6713

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog outputs8 voltage output channels

Resolution12 bits

Output range±10 V with internal reference

Maximum update rateUp to 1 MS/s; depends on channel count and transfer mode

Digital I/O8 TTL/CMOS lines

Counter/timers2 up/down counters, 24-bit resolution

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Output reference selection is software-configurable per channel. The internal reference provides a bipolar ±10 V range; selecting an external reference sets the bipolar range to ±EXT REF.

Simultaneous multichannel analog output updates.
Per-channel selection of internal or external output reference.
Digital triggering and external clocking.
16,384-sample onboard FIFO for analog output data.
68-pin male SCSI-II-type I/O connector.

Verified specifications

Technical data

Verified product specifications.

Analog output channels	8 channels
Analog output resolution	12 bits
Output ranges	±10 V or ±EXT REF
Maximum update rate, 1–5 channels	1000; local FIFO or host memory, subject to documented conditions kS/s per channel
Eight-channel continuous update rate, local FIFO	740 kS/s per channel
Eight-channel host-memory update rate	769; measured with PCI-6711/6713 on NI's documented test system, system-dependent kS/s per channel
FIFO capacity	16384 samples
Analog output current drive	±5 maximum mA
Digital I/O	8 input/output lines; TTL/CMOS
Counter/timers	2 up/down; 24-bit; 20 MHz and 100 kHz base clocks
I/O connector	68-pin male SCSI-II type

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-6713

Eight-channel voltage output module

Signal connections

NI's 67xx accessory guide identifies the PXI-6713 in the 68-pin SCSI connector group.

Select cables by model and connector type; check NI's accessory limitations and channel-dependent update-rate table.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXI-6713 Product PageProduct Page · ni.com

Open →

NI 6711/6713/DAQCard-6715 SpecificationsSpecifications · docs-be.ni.com

Open →

Analog Output Series User ManualUser Manual · docs-be.ni.com

Open →

NI 67xx Analog Output Cable and Accessory Compatibility GuideTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can all eight outputs continuously update at 1 MS/s?

Not according to NI's channel-dependent table. Eight-channel continuous generation from the local FIFO is specified at 740 kS/s per channel. The host-memory result is 769 kS/s under NI's stated test conditions and varies with system activity.

Does the PXI-6713 support an external voltage reference?

Yes. Each output channel can select an internal or external reference in software. The internal-reference range is ±10 V; the external-reference range is ±EXT REF.

Which part numbers does NI list for this model?

NI lists 185860-01 for the analog output board-only configuration and 777795-01 for the module configuration originally supplied with NI-DAQ software. These identify manufacturer configurations, not the contents of this catalog item.
