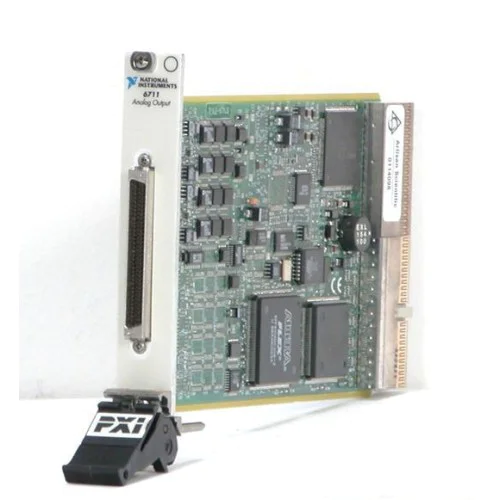

National Instruments PXI-6711 product image 1
National Instruments PXI-6711 product image 1 additional viewNational Instruments PXI-6711 product image 1 additional viewNational Instruments PXI-6711 product image 1 additional view
4 images: additional views below.Click to enlarge
National Instruments · PXI

PXI-6711

The National Instruments PXI-6711 is a four-channel, 12-bit PXI analog output module supporting simultaneous updates at up to 1 MS/s per channel. It also provides digital I/O, counter/timers, digital triggering, and external clocking.

ManufacturerNational Instruments
ModelPXI-6711
Part Number777794-01
Product TypeAnalog output module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6711

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog outputs4 voltage output channels
Resolution12 bits
Maximum update rate1 MS/s per channel
Output range±10 V with internal reference
Digital and timing I/O8 digital I/O lines; two 24-bit counter/timers
Signal connector68-pin male SCSI-II type
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Each DAC can use the internal 10 V reference or an external reference connected through AO EXT REF. The onboard FIFO supports waveform generation, while the PXI trigger bus provides timing connections within the modular system.

  • Simultaneous updates across four analog output channels.
  • Eight 5 V TTL/CMOS digital I/O lines.
  • Two 24-bit, 20 MHz counter/timers.
  • Digital triggering and external clocking capabilities.
  • Individually selectable internal or external DAC reference.
Verified specifications

Technical data

Verified product specifications.

Analog output channels4 channels
Analog output resolution12 bits
Maximum update rate1 per channel, with all four channels active using local FIFO MS/s
Analog output ranges±10 V or ±external reference
Output current drive±5 maximum mA
FIFO capacity8192 samples
Digital I/O8 input/output lines; TTL/CMOS
Counter/timers2 up/down counters; 24-bit resolution; 20 MHz and 100 kHz base clocks
I/O connector68-pin male SCSI-II type
Operating temperature0 to 50 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI/CompactPCI

Module bus interface

PXI-6711

Four-channel analog output module

Synchronization

Six PXI trigger lines, one star trigger, and one clock connection.

Check the exact module revision, chassis slot requirements, driver support, and cable/accessory combination before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXI-6711 Product PageProduct Page · ni.com
Open →
NI 6711/6713/DAQCard-6715 SpecificationsSpecifications · docs-be.ni.com
Open →
Analog Output Series User ManualUser Manual · docs-be.ni.com
Open →
NI 67xx Cable and Accessory Compatibility GuideTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can all four channels update at 1 MS/s?

Yes. NI specifies 1 MS/s per channel for four-channel operation using the local FIFO. Host-memory streaming performance depends on system and bus activity.

Can the output range use an external reference?

Yes. Each DAC can select the internal 10 V reference or the AO EXT REF input. NI specifies that the external reference signal should remain within ±11 V of AO GND.

Which signal connection accessories does NI list?

NI lists SH68-68-EPM and R6868 cables with accessories including SCB-68A, BNC-2110, TBX-68, CB-68LP, and CB-68LPR. TB-2705 attaches directly to the PXI front connector; the PXI-6711 does not use all its terminals.
