PXI-6733

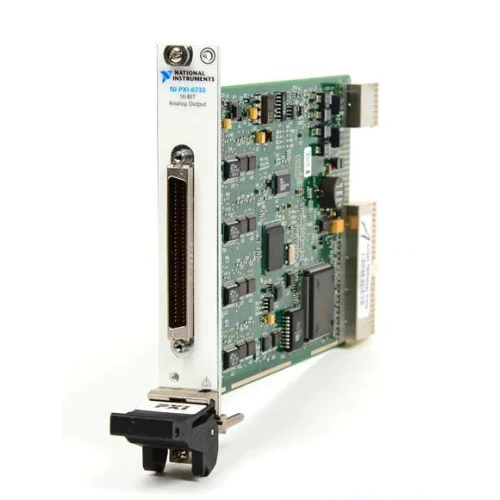

1 image: Click to enlarge
NI (National Instruments) · PXI Hybrid

PXI-6733

The NI PXI-6733 is an 8-channel, 16-bit PXI analog output module with a maximum analog update rate of 1 MS/s. It provides a -10 V to 10 V output range, along with digital I/O and counters/timers.

ManufacturerNI (National Instruments)
ModelPXI-6733
Part Number778512-01
Product Type16-Bit, 8-Channel, 1 MS/s PXI Analog Output Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6733

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog Output Channels8
Analog Output Resolution16 bits
Maximum Analog Update Rate1 MS/s
Analog Output Voltage Range-10 V to 10 V
Bus ConnectorPXI Hybrid
Bus ConnectionPXI Hybrid
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-6733 provides eight analog voltage output channels with 16-bit resolution and a maximum update rate of 1 MS/s. Its -10 V to 10 V output range supports waveform generation, including square, sine, sawtooth and complex waveforms.

Alongside its analog outputs, the module includes eight bidirectional digital I/O channels and two counters/timers. The existing verified catalog data lists a PXI Hybrid bus connection and a SCSI-type front connection; consult NI documentation when selecting the chassis, cabling and software for a specific system.

  • Eight analog output channels with 16-bit resolution.
  • Maximum analog update rate of 1 MS/s.
  • Analog voltage output range of -10 V to 10 V.
  • Eight bidirectional digital I/O channels with 5 V TTL/CMOS logic levels.
  • Two 24-bit, 20 MHz counters/timers, with digital triggering and external clocking capabilities.
  • Supports common waveforms such as square, sine and sawtooth, as well as complex waveforms.
Verified specifications

Technical data

Verified product specifications.

Number of Analog Output Channels8
Analog Output Resolution16 bits
Maximum Analog Update Rate1 MS/s
Analog Output Voltage Range-10 V to 10 V
Bus ConnectorPXI Hybrid
Bus ConnectionPXI Hybrid
Analog Output IsolationNone
Number of Bidirectional Digital Channels8
Digital I/O Logic Levels5 V TTL
Operating Temperature Range0 °C to 55 °C
Number of Counters/Timers2
Front Connection TypeSCSI Type
Maximum Current Drive5 mA
NI part numbers778512-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI Hybrid

Bus Connector

PXI-6733

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many analog output channels does the PXI-6733 provide?

The PXI-6733 provides eight analog output channels with 16-bit resolution.

What is the maximum analog update rate?

The specified maximum analog update rate is 1 MS/s. Consult the NI specifications for operating conditions and timing details.

Does the PXI-6733 include digital I/O and counters?

Yes. It includes eight bidirectional digital I/O channels with 5 V TTL/CMOS logic levels and two counters/timers.

Does the PXI-6733 provide analog input channels?

No. The existing verified specifications list zero differential analog input channels; this model is an analog output module.
