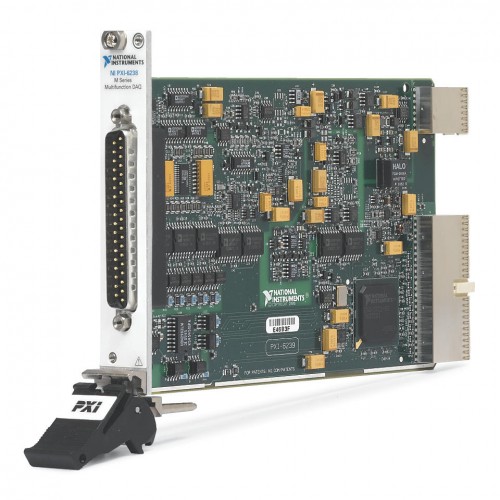

The NI PXI-6238 is an isolated M Series DAQ module with eight differential current inputs, 16-bit resolution and a maximum acquisition rate of 250 kS/s.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PXI-6238 combines current input/output, bank isolation and sourcing digital outputs in a PXI module.
NI identifies this model as an NI-DAQmx-supported M Series device. Check the selected driver release against the host operating system before integration.
Verified product specifications.
| Analog input channels | 8 differential current inputs |
|---|---|
| ADC resolution | 16 bits |
| Maximum acquisition rate | 250 kS/s |
| Analog input range | ±20 mA |
| Analog output channels | 2 current outputs |
| Analog output range | 0 to 20 mA |
| Maximum analog output update rate | 500 single-channel; 450 per channel with two channels kS/s |
| Digital channels | 6 inputs; 4 sourcing outputs |
| Form factor | Standard 3U PXI |
| I/O connector | 37-pin D-SUB |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
DAQ platform and family
Isolated current-input DAQ module
NI-DAQmx; model support documented in the version 8.3 readme.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
They are eight differential current inputs, not the eight single-ended or four differential inputs stated in the legacy catalog description.
NI specifies PXI slots or PXI Express hybrid slots.
Yes. The analog outputs require a user-provided 10–30 VDC supply.
