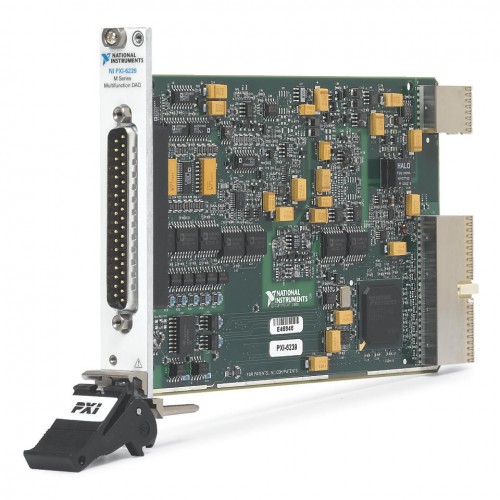

NI (National Instruments) PXI-6239 8 AI (16-Bit, 250 kS/s), 2 AO, 6 DI, 4 Sinking DO, Bank-Isolated, PXI Multifunction I/O Module
1 image: Click to enlarge
NI (National Instruments) · PXI Hybrid

PXI-6239

The NI PXI-6239, part number 779626-01, is a bank-isolated PXI multifunction I/O module for current I/O. It combines analog inputs and outputs, digital I/O, counters and digital triggering.

ManufacturerNI (National Instruments)
ModelPXI-6239
Part Number779626-01
Product Type8 AI (16-Bit, 250 kS/s), 2 AO, 6 DI, 4 Sinking DO, Bank-Isolated, PXI Multifunction I/O Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6239

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Current Flow DirectionSinking Output
Analog Input Resolution16 bits
Maximum Sample Rate250 kS/s
Number of Counters/Timers2
Simultaneous SamplingNo
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-6239 combines current measurement and output functions with digital I/O in a bank-isolated PXI module. Its eight differential analog inputs provide 16-bit resolution at a maximum sample rate of 250 kS/s; simultaneous sampling is not supported.

Two analog outputs support a maximum update rate of 500 kS/s. Six digital inputs, four sinking digital outputs, two counters/timers and digital triggering provide additional measurement and control functions. The digital inputs and outputs support 24 V signals.

  • Eight differential current input channels with 16-bit resolution and a maximum sample rate of 250 kS/s.
  • Two analog output channels with a maximum update rate of 500 kS/s.
  • Six digital inputs and four sinking digital outputs for 24 V signals.
  • Bank isolation, two counters/timers and digital triggering.
  • PXI Hybrid bus connection and D-SUB front connection.
Verified specifications

Technical data

Verified product specifications.

Current Flow DirectionSinking Output
Analog Input Resolution16 bits
Simultaneous SamplingNo
Maximum Sample Rate250 kS/s
Number of Counters/Timers2
Number of Analog Output Channels2
Maximum Analog Update Rate500 kS/s
Bus ConnectorPXI Hybrid
Electrical Signal MeasuredCurrent
Analog Input FIFO Buffer Size4095 samples
Maximum Number of Differential Analog Input Channels8
ReconfigurableYes
Bus ConnectionPXI Hybrid
Front Connection TypeD-SUB
Number of Digital Input Only Channels6
Number of Digital Output Only Channels4
NI part numbers779626-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI Hybrid

Bus Connector

PXI-6239

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PXI-6239 measure current or voltage?

The PXI-6239 is identified as a current I/O module. Its analog input configuration provides eight differential channels.

Does the PXI-6239 sample all analog inputs simultaneously?

No. It provides 16-bit analog input resolution and a maximum sample rate of 250 kS/s, but does not support simultaneous sampling.

What outputs does the PXI-6239 provide?

It has two analog output channels with a maximum update rate of 500 kS/s and four sinking digital output channels.

What is the NI part number for the PXI-6239?

The supplied verified catalog record identifies NI part number 779626-01.
