NI (National Instruments) PXI-6236 4 AI (16-Bit, 250 kS/s), 4 AO, 6 DI, 4 DO, Bank-Isolated, PXI Multifunction I/O Module

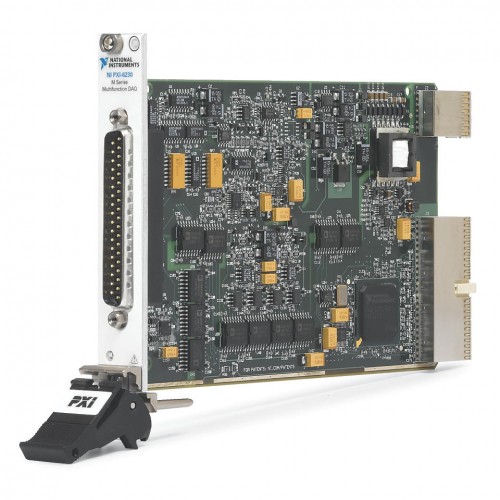

1 image: Click to enlarge
NI (National Instruments) · PXI Hybrid

PXI-6236

The NI PXI-6236, part number 779622-01, is a bank-isolated PXI multifunction I/O module for current I/O. It combines analog inputs and outputs with digital I/O, counters/timers and triggering functions.

ManufacturerNI (National Instruments)
ModelPXI-6236
Part Number779622-01
Product Type4 AI (16-Bit, 250 kS/s), 4 AO, 6 DI, 4 DO, Bank-Isolated, PXI Multifunction I/O Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6236

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog Input Resolution16 bits
Maximum Sample Rate250 kS/s
Number of Counters/Timers2
Analog Output Channels4
Simultaneous SamplingNo
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-6236 brings bank-isolated current I/O into a PXI measurement system. Its analog section provides 4 differential input channels with 16-bit resolution and a maximum sample rate of 250 kS/s, plus 4 analog output channels with a maximum update rate of 500 kS/s. Analog inputs are not sampled simultaneously.

The module also provides 6 digital input-only channels, 4 digital output-only channels and 2 counters/timers. A PXI Hybrid bus connection integrates the module into the platform, while a D-SUB front connection provides field-signal connectivity.

  • Bank-isolated design for current I/O.
  • 4 differential analog inputs with 16-bit resolution and a maximum sample rate of 250 kS/s.
  • 4 analog outputs with a maximum update rate of 500 kS/s.
  • 6 digital input-only channels and 4 digital output-only channels for 5 V TTL/CMOS signals.
  • 2 counters/timers and digital triggering functions.
Verified specifications

Technical data

Verified product specifications.

Analog Input Resolution16 bits
Simultaneous SamplingNo
Maximum Sample Rate250 kS/s
Number of Counters/Timers2
Number of Analog Output Channels4
Maximum Analog Update Rate500 kS/s
Bus ConnectorPXI Hybrid
Electrical Signal MeasuredCurrent
Analog Input FIFO Buffer Size4095 samples
Maximum Number of Differential Analog Input Channels4
ReconfigurableYes
Bus ConnectionPXI Hybrid
Front Connection TypeD-SUB
Number of Digital Input Only Channels6
Number of Digital Output Only Channels4
NI part numbers779622-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI Hybrid

Bus Connector

PXI-6236

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PXI-6236 measure current or voltage?

The PXI-6236 is a bank-isolated current I/O module. Its verified electrical signal measured is current.

What analog input resolution and sample rate does it provide?

It provides 16-bit analog input resolution and a maximum sample rate of 250 kS/s across its analog input subsystem.

Does the PXI-6236 support simultaneous sampling?

No. The PXI-6236 does not support simultaneous analog input sampling.

How many digital input and output channels are provided?

The module provides 6 digital input-only channels and 4 digital output-only channels, with no bidirectional digital channels.

What is the NI part number for this model?

The supplied verified catalog identity lists NI part number 779622-01 for the PXI-6236.
