National Instruments PXI-6232 Isolated multifunction data acquisition module

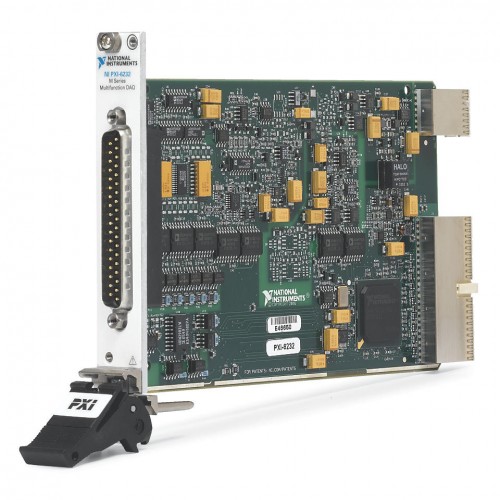

1 image: Click to enlarge
National Instruments · PXI

PXI-6232

The NI PXI-6232 is an isolated M Series data acquisition module with 16-bit analog input at up to 250 kS/s. It supports 16 single-ended or 8 differential input channels.

ManufacturerNational Instruments
ModelPXI-6232
Product TypeIsolated multifunction data acquisition module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6232

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs16 single-ended or 8 differential
Input performance16-bit, 250 kS/s maximum
Analog outputs2 voltage channels
Digital I/O6 inputs, 4 sourcing outputs
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-6232 combines voltage acquisition, voltage generation, digital I/O and counter/timer functions with bank isolation.

This is a 3U PXI-1 peripheral module using PCI signaling, not a native PXI Express module. Its hybrid slot-compatible design supports installation in PXI peripheral slots and appropriate PXI Express chassis slots.

  • Selectable single-ended or differential analog input configuration.
  • Bipolar voltage input ranges from ±0.2 V to ±10 V.
  • Two 32-bit counters/timers.
  • PXI backplane clock and trigger integration.
Verified specifications

Technical data

Verified product specifications.

Analog input channels16 single-ended or 8 differential
Analog input resolution16 bit
Maximum analog input sample rate250 kS/s
Analog input ranges±0.2, ±1, ±5, ±10 V
Analog output channels2
Analog output resolution16 bit
Analog output range±10 V
Digital channels6 inputs; 4 sourcing outputs; fixed direction
Counters/timers2, 32-bit
I/O connector37-pin D-SUB
Operating temperature0 to 55 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI-1

PCI-signaling modular instrumentation platform

PXI-6232

3U hybrid slot-compatible peripheral module

Driver evidence

NI-DAQmx 8.3 documentation explicitly lists PXI-6232 support.

Use a PXI peripheral, PXI-1 or PXI hybrid slot; do not assume every PXI Express slot accepts this module.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 6232 Device SpecificationsSpecifications · download.ni.com
Open →
NI 6232/6233 User ManualUser Manual · docs-be.ni.com
Open →
NI-DAQmx 8.3 Readme — historical device supportTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
PXI-6230View product →
Related model
PXI-6236View product →
FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PXI-6232 fit a PXI Express chassis?

Yes, in PXI-1 or PXI hybrid peripheral slots. It communicates using PCI signaling rather than PCI Express.

Which driver documentation lists the PXI-6232?

NI-DAQmx 8.3 lists the PXI-6232. This historical listing does not establish compatibility with every later driver or operating system.

Ask SOHO AssistantProduct & compatibility help
