National Instruments · PXI

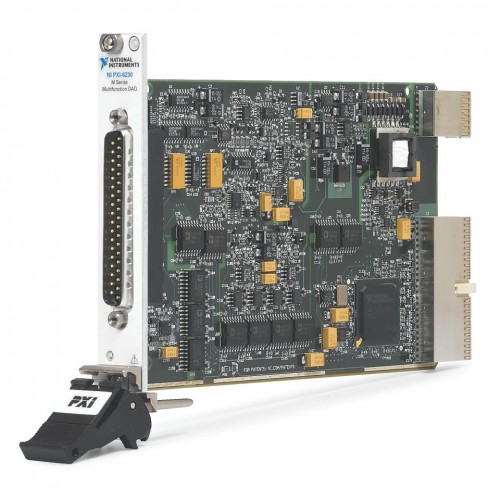

PXI-6230

Name: PXI-6230
Brand: National Instruments

The National Instruments PXI-6230 is a bank-isolated M Series multifunction DAQ module with 16-bit analog input and a maximum single-channel sampling rate of 250 kS/s. It combines voltage acquisition, voltage output, and digital I/O in a PXI module.

ManufacturerNational Instruments

ModelPXI-6230

Product TypeBank-isolated multifunction data acquisition module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6230

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs8 single-ended or 4 differential

Input resolution16 bits

Maximum single-channel sample rate250 kS/s

Outputs and digital channels4 AO, 6 DI, 4 DO

Signal connector37-pin D-SUB

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-6230 belongs to NI's M Series DAQ family and provides bank-isolated acquisition for PXI systems. NI's NI-DAQmx 8.3 documentation explicitly lists this model as a supported device.

Connection planning requires attention to cable ratings as well as connector fit. NI identifies the PXI-6230 as an isolated 37-pin D-SUB module requiring higher-rated cabling to meet its specifications.

Selectable voltage input ranges: ±0.2 V, ±1 V, ±5 V, and ±10 V.
Four 16-bit voltage outputs with a ±10 V output range.
Bank isolation for the multifunction I/O front end.

Verified specifications

Technical data

Verified product specifications.

Analog input configuration	8 single-ended or 4 differential channels
ADC resolution	16 bits
Maximum single-channel sample rate	250 kS/s
Analog input ranges	±0.2, ±1, ±5, ±10 V
Analog outputs	4 channels
DAC resolution	16 bits
Analog output range	±10 V
Maximum analog output update rate	500 with one channel; 400 per channel with four channels kS/s
Digital channels	6 inputs, 4 outputs
Form factor	Standard 3U PXI
I/O connector	37-pin D-SUB

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-6230

M Series bank-isolated DAQ module

Slot support

PXI slots or PXI Express hybrid slots.

Use the specified cable ratings and review the manufacturer's working-voltage limits before wiring.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 6230 Device SpecificationsSpecifications · download.ni.com

Open →

PXI-6230 Dimensional DrawingsDimensional Drawings And CAD · ni.com

Open →

NI 62xx Cable and Accessory Compatibility GuideTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can the PXI-6230 be installed in a PXI Express chassis?

NI specifies installation in PXI slots or PXI Express hybrid slots. This does not establish support for every PXI Express slot type.

Which cable does NI recommend for the PXI-6230?

NI recommends the DB37M-DB37F-EP cable. Its compatibility guide permits SH37F-37M as an alternative but states that the device is derated when that cable is used.

Does NI list a direct-mount terminal block for this module?

Yes. NI lists the TB-2621 for direct attachment to the PXI module's front connector without a cable.
