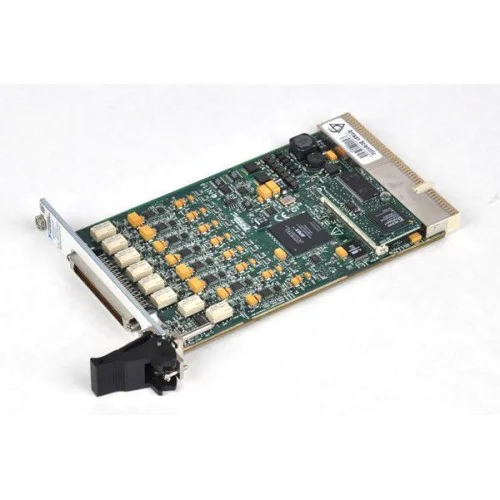

National Instruments PXI-6123 Simultaneous-sampling multifunction DAQ module
1 image: Click to enlarge
National Instruments · PXI

PXI-6123

The NI PXI-6123 is an S Series multifunction DAQ module with eight simultaneous-sampling, 16-bit analog inputs operating at up to 500 kS/s per channel. It also provides eight digital I/O lines and two 24-bit counter/timers.

ManufacturerNational Instruments
ModelPXI-6123
Part Number779181-01
Product TypeSimultaneous-sampling multifunction DAQ module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6123

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs8 differential channels
Resolution16-bit
Maximum sampling rate500 kS/s per channel, simultaneous
Digital I/O8 bidirectional lines
Counter/timers2 × 24-bit
Analog outputsNone
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-6123 uses a dedicated 16-bit analog-to-digital converter for each of its eight analog input channels. This simultaneous-sampling architecture acquires multiple channels together rather than sequentially through a shared converter.

Alongside analog acquisition, the module provides correlated digital I/O and general-purpose counter/timers. Its PXI trigger-bus and star-trigger connections support integration into triggered measurement systems.

  • Dedicated ADC per analog input channel for simultaneous acquisition.
  • Selectable bipolar analog input ranges from ±1.25 V to ±10 V.
  • Eight TTL-compatible correlated digital I/O lines.
  • Two general-purpose 24-bit counter/timers.
  • Digital triggering for acquisition control.
Verified specifications

Technical data

Verified product specifications.

Differential analog input channels8 channels
Analog input resolution16 bits
Maximum analog input sampling rate500 kS/s/channel
Analog input ranges±10, ±5, ±2.5, ±1.25 V
Analog input couplingDC
Digital I/O channels8 bidirectional; TTL/CMOS compatible
Counter/timers2 up/down counter/timers, 24-bit resolution
I/O connector68-pin male SCSI-II type
Dimensions excluding connectors16.0 × 10.0 cm
Operating temperature0 to 50 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

S Series

Simultaneous-sampling DAQ family

PXI-6123

Analog input, digital I/O, and timing module

Check chassis slot support, signal wiring, and driver version before integration; this model has no analog outputs.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXI-6123 Product PageProduct Page · ni.com
Open →
NI 6122/6123 SpecificationsSpecifications · docs-be.ni.com
Open →
S Series User ManualUser Manual · docs-be.ni.com
Open →
S Series wiring, triggering, and NI 6123 pinout referenceTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
PXI-6122View product →
Related model
PXI-6133View product →
Related model
PXI-6143View product →

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is 500 kS/s shared across the analog input channels?

No. The specified maximum is 500 kS/s per channel, with simultaneous sampling and a dedicated ADC for each channel.

Does the PXI-6123 generate analog output signals?

No. It provides analog inputs, digital I/O, and counter/timers, but no analog output channels.

Where can I find the PXI-6123 connector pinout?

The NI 6122/6123 section in Appendix A of the S Series User Manual includes the NI 6123 I/O connector pinout.

Ask SOHO AssistantProduct & compatibility help
