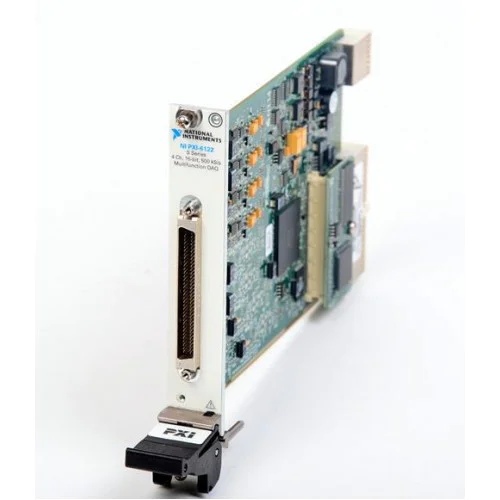

The NI PXI-6122 is a simultaneous-sampling multifunction DAQ module with four 16-bit analog inputs operating at up to 500 kS/s per channel.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Within NI's S Series, the PXI-6122 uses a dedicated 16-bit ADC for each analog input channel. Its architecture samples all four channels simultaneously rather than sharing one converter between channels.
The module combines analog acquisition, digital I/O, counter/timer functions, and digital triggering. It has no analog output channels.
Verified product specifications.
| Analog input channels | 4 channels |
|---|---|
| Analog input resolution | 16 bits |
| Maximum sampling rate | 500 kS/s per channel |
| Analog input ranges | ±10, ±5, ±2.5, ±1.25 V |
| Input coupling | DC |
| Analog input FIFO | 16 MS |
| Digital I/O channels | 8 channels |
| Counter/timers | 2 up/down counters, 24-bit resolution |
| I/O connector | 68-pin male SCSI-II type |
| Dimensions excluding connectors | 16.0 × 10.0 cm |
| Operating temperature | 0 to 50 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Modular instrumentation platform
Simultaneous-sampling DAQ module
NI-DAQmx
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
Yes. Each input has its own 16-bit ADC, enabling simultaneous acquisition across four channels.
No. NI lists zero analog output channels for this model.
The NI 6122 has four simultaneous analog inputs; the NI 6123 has eight. Both use 16-bit ADCs.
