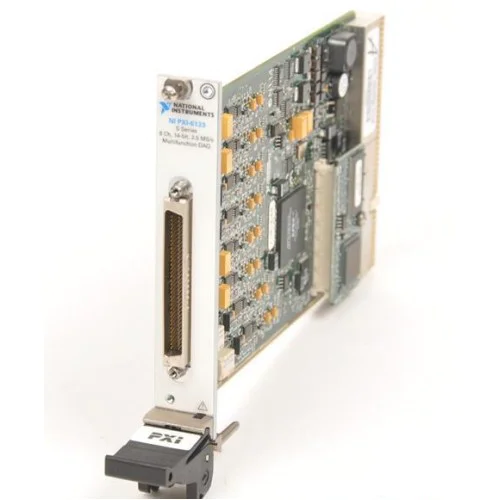

National Instruments PXI-6133 Simultaneous-sampling multifunction DAQ module
1 image: Click to enlarge
National Instruments · PXI

PXI-6133

The NI PXI-6133 is an S Series simultaneous-sampling multifunction DAQ module for PXI systems, combining analog acquisition with digital I/O and counter/timer functions.

ManufacturerNational Instruments
ModelPXI-6133
Product TypeSimultaneous-sampling multifunction DAQ module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6133

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs8 differential channels
Resolution14-bit
Maximum sampling rate2.5 MS/s per channel
Digital I/O8 TTL/CMOS lines
CountersTwo 24-bit counter/timers
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-6133 belongs to NI's 61xx simultaneous-sampling multifunction I/O family, formerly called S Series. Its front-panel signal connection uses a 68-pin SCSI connector rather than the VHDCI connector used by some other 61xx models.

  • Simultaneous-sampling analog input architecture.
  • Four bipolar input ranges.
  • Analog and digital triggering.
  • PXI trigger-bus and star-trigger connections.
Verified specifications

Technical data

Verified product specifications.

Analog input channels8 differential channels
ADC resolution14 bits
Maximum sampling rate per channel2.5 MS/s
Analog input ranges±10, ±5, ±2.5, ±1.25 V
Input couplingDC
Input FIFO capacity16 or 32; installed variant not identified MSamples
Digital I/O8 input/output lines; TTL/CMOS
Counter/timers2 up/down counters, 24-bit
I/O connector68-pin male SCSI-II type
Dimensions excluding connectors16.0 × 10.0 cm
Operating temperature0 to 50 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Module platform

PXI-6133

Simultaneous-sampling multifunction DAQ

Signal connection

NI's cable guide places PXI-6133 in Group 1, the 68-pin SCSI simultaneous-sampling group.

Confirm cable/accessory combinations using NI's guide; shared connector grouping does not establish identical functionality.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 6132/6133 SpecificationsSpecifications And Pinout · download.ni.com
Open →
PXI-6133 Dimensional DrawingsDrawings And CAD Resources · ni.com
Open →
NI 61xx Cable and Accessory Compatibility GuideCompatibility Guide · ni.com
Open →
PXI-6133 Dimensional Drawings and CAD ModelsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is 2.5 MS/s shared across the analog inputs?

No. NI specifies 2.5 MS/s per channel.

Which onboard memory capacity does this record identify?

NI documents 16 and 32 MSample variants. This catalog record does not identify the installed variant.

Does the PXI-6133 use a VHDCI signal connector?

No. NI lists PXI-6133 in its 68-pin SCSI connector group, not its VHDCI group.
