National Instruments · PXI

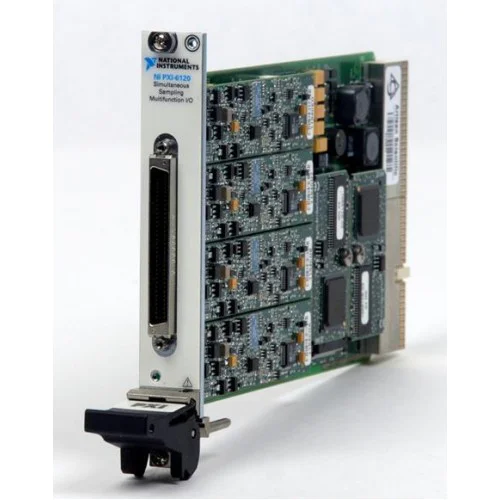

PXI-6120

The NI PXI-6120 is an S Series multifunction DAQ module with four simultaneous-sampling, 16-bit analog inputs rated at 800 kS/s per channel. It also provides two analog outputs, eight digital I/O lines and two 24-bit counters.

ManufacturerNational Instruments

ModelPXI-6120

Part Number778396-01

Product TypeMultifunction DAQ module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6120

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog input4 simultaneous-sampling, 16-bit channels

Maximum input rate800 kS/s per channel

Analog output2 channels, 16-bit

Digital I/O8 bidirectional lines

Counters2 counters, 24-bit

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-6120 combines simultaneous analog acquisition with analog generation, digital I/O and counter functions in a PXI module. NI identifies synchronized stimulus/response measurements as a product-relevant application.

Its four analog inputs are pseudodifferential and support AC or DC coupling. Selectable input ranges extend from ±0.2 V to ±42 V; observe the separate working-voltage limits for positive and negative input terminals.

Simultaneous sampling across four 16-bit analog input channels.
Selectable bipolar analog input ranges from ±0.2 V through ±42 V.
AC and DC input coupling.
Two 16-bit voltage outputs with a ±10 V output range.
Eight digital I/O lines, two 24-bit counters and digital triggering.

Verified specifications

Technical data

Verified product specifications.

Analog input channels	4 pseudodifferential
Analog input resolution	16 bit
Maximum analog input sampling rate	800 kS/s/ch
Sampling architecture	Simultaneous
Analog input ranges	±0.2, ±0.5, ±1, ±2, ±5, ±10, ±20, ±42 V
Input coupling	AC/DC
Positive input working voltage	±42 V on ±20 V and ±42 V ranges; ±11 V on other ranges
Negative input working voltage	±2.5 V
Analog output channels	2 voltage outputs
Analog output resolution	16 bit
Analog output range	±10 V
Maximum analog output update rate	4 MS/s with one channel; 2.5 MS/s with two channels; system dependent. Above 1 MS/s, output slew rate may degrade.
Digital I/O channels	8 input/output; TTL/CMOS
Counters	2, each 24-bit
Front signal connector	68-pin SCSI 0.050 D-Type

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular hardware platform

S Series PXI-6120

Simultaneous-sampling multifunction DAQ module

Signal connection

68-pin SCSI 0.050 D-Type connector

Check the exact module revision, chassis slot, driver version and signal-accessory ratings before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXI-6120 Product PageProduct Page · ni.com

Open →

NI 6115/6120 SpecificationsSpecifications PDF · download.ni.com

Open →

61xx Models Cable and Accessory Compatibility GuideCompatibility Guide · ni.com

Open →

Analog Input, Output and Digital SpecificationsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PXI-6120 sample its analog inputs simultaneously?

Yes. Its four analog input channels sample simultaneously with 16-bit resolution at a documented maximum of 800 kS/s per channel.

Does it provide analog outputs?

Yes. The specifications list two 16-bit voltage outputs with a ±10 V range. Maximum update rates are system dependent: 4 MS/s for one channel or 2.5 MS/s for two channels.

Which signal cable does NI recommend?

NI lists the SH68-68-EPM as the recommended shielded cable for the 6115/6120 group. The PXI-6120 uses a 68-pin SCSI 0.050 D-Type front connector.
