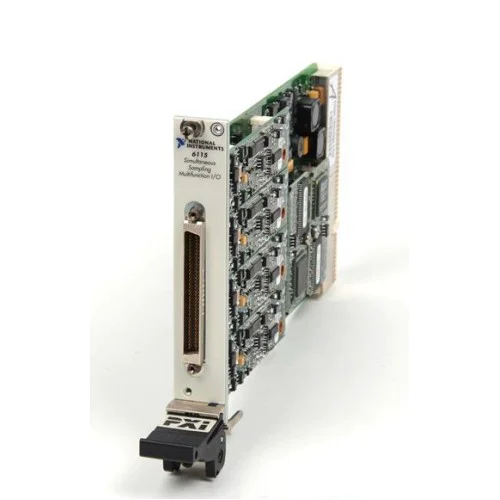

The NI PXI-6115 is a simultaneous-sampling multifunction DAQ module with four 12-bit analog inputs operating at up to 10 MS/s per channel.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Part of NI's S Series, the PXI-6115 combines simultaneous analog acquisition with multifunction I/O. S Series devices use an independent ADC for each input channel.
For multidevice timing, the PXI-6115 automatically phase-locks to the PXI backplane CLK10 reference when installed in a PXI chassis.
Verified product specifications.
| Analog input channels | 4 pseudodifferential |
|---|---|
| Analog input resolution | 12 bits |
| Maximum analog input sample rate | 10 MS/s/channel |
| Minimum analog input sample rate | 20 kS/s |
| Analog input coupling | AC/DC |
| Analog output channels | 2 channels |
| Digital I/O | 8 bidirectional lines |
| Counters | 2 × 24-bit |
| Signal connector | 68-pin SCSI 0.050 D-Type |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Modular instrumentation platform
Simultaneous-sampling multifunction DAQ
Automatically phase-locks to CLK10 in a PXI chassis.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
The PXI-6115 has 12-bit analog input resolution. The shared NI specifications document identifies the NI 6120 as the 16-bit model.
Yes. Its four analog inputs support simultaneous sampling at up to 10 MS/s per channel.
Yes. NI documents automatic phase locking to the CLK10 reference when the PXI-6115 is installed in a PXI chassis.
