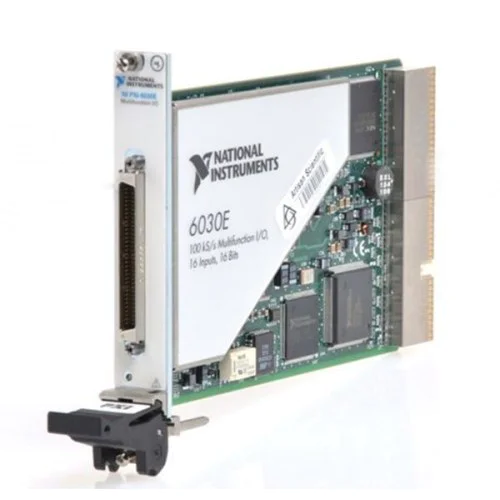

National Instruments PXI-6030E Multifunction data acquisition module
1 image: Click to enlarge
National Instruments · PXI

PXI-6030E

The National Instruments PXI-6030E is an E Series multifunction DAQ module combining 16-bit analog input with two analog outputs, eight digital I/O lines and two counter/timers.

ManufacturerNational Instruments
ModelPXI-6030E
Product TypeMultifunction data acquisition module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6030E

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs16 single-ended or 8 differential
Input resolution16-bit
Maximum single-channel sampling100 kS/s
Analog outputs2 channels, 16-bit
Digital I/O8 lines
Counter/timers2 counters, 24-bit
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-6030E combines analog acquisition, analog output, digital I/O and counter/timer functions in the PXI platform. NI identifies it as an E Series DAQ device.

Input configuration is software-selectable. The 100 kS/s maximum is a single-channel specification; multichannel scanning must account for settling time and the required accuracy.

  • 16-bit analog acquisition with 16 analog input channels.
  • Two analog output channels alongside eight digital I/O lines.
  • Two counter/timers for timing I/O.
  • Analog triggering with selectable slope and programmable hysteresis.
Verified specifications

Technical data

Verified product specifications.

Analog input configuration16 single-ended or 8 differential
Analog input resolution16 bit
Maximum single-channel sampling rate100 kS/s
Analog output channels2 channels
Analog output resolution16 bit
Analog output ranges±10 V or 0 to 10 V, software-selectable
Digital I/O lines8 lines
Counter/timer channels2 channels
Counter/timer resolution24 bit
I/O connector68-pin male SCSI-II type
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI / E Series

Hardware platform and DAQ family

PXI-6030E

Multifunction DAQ module

Driver evidence

NI-DAQmx 17.5 lists the NI 6030E in its supported PXI E Series devices.

Confirm the intended driver version, operating system and cable arrangement before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 6030E/6031E/6032E/6033E Family SpecificationsSpecifications And Pinout · download.ni.com
Open →
Archived NI 60xx/60xxE Cable and Accessory Compatibility GuideCompatibility Guide · ni.com
Open →
NI-DAQmx 17.5 ReadmeHistorical Driver Support Reference · download.ni.com
Open →
PXI-6030E pinout and electrical specificationsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
PXI-6031EView product →
Related model
PXI-6052EView product →

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can the PXI-6030E use differential analog inputs?

Yes. It supports eight differential inputs or 16 single-ended inputs.

Does 100 kS/s apply to every input simultaneously?

No. NI specifies 100 kS/s for single-channel acquisition and directs users to settling-time requirements for multichannel rates.

Is this an analog-input-only module?

No. It also provides two analog output channels, eight digital I/O lines and two counter/timers.
