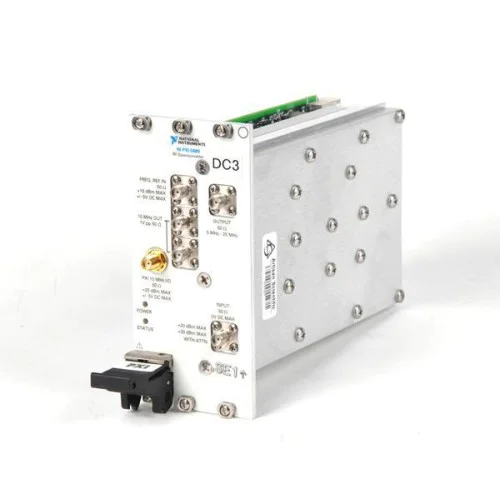

The National Instruments PXI-5600 is an RF downconverter used in modular vector signal analyzer systems, including the PXI-5660 and PXI-5661.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PXI-5600 provides the RF downconversion stage rather than a complete digitizing analyzer. NI documents pairing it with the PXI-5620 digitizer for the PXI-5660, or with the PXI-5142 IF digitizer for the PXI-5661.
Verified product specifications.
| RF frequency range | 9 kHz to 2.7 GHz |
|---|---|
| Instantaneous bandwidth | 20 MHz |
| IF output frequency range | 5 to 25 MHz |
| RF input attenuation | 0 to 50, in 10 dB steps dB |
| RF input impedance | 50 nominal Ω |
| RF input coupling | AC |
| Maximum safe continuous RF input | +30 dBm with attenuation ≥10 dB; +20 dBm with 0 dB attenuation |
| Physical format | 3U, three-slot PXI/cPCI |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Module platform
RF downconversion stage
PXI-5600 downconverter with PXI-5620 digitizer.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. It is the RF downconverter module. NI's PXI-5661 configuration combines it with a PXI-5142 IF digitizer.
Yes. NI documents these modules together as the PXI-5660. Its support article explains initialization using the NI 5660 VIs and configuration considerations in MAX.
