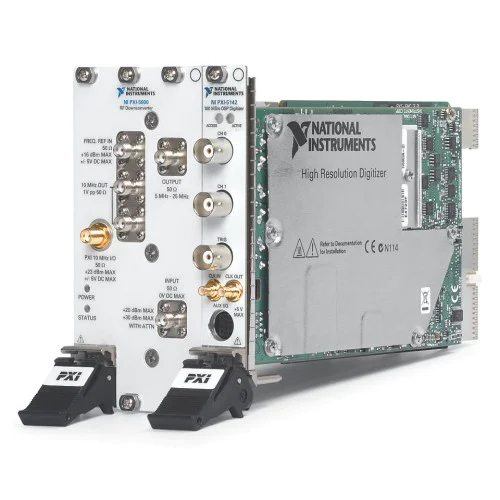

The NI PXI-5661 is a modular 2.7 GHz RF vector signal analyzer with digital downconversion. It combines a PXI-5600 RF downconverter and a PXI-5142 IF digitizer.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PXI-5661 provides RF signal acquisition and analysis in a compact 3U PXI system. Its onboard quadrature digital downconversion reduces the data payload transferred to the host.
This model identifies a multi-module instrument, not a single standalone card. NI's getting-started guide describes installation, configuration, and testing of the downconverter and IF digitizer using NI-RFSA.
Verified product specifications.
| RF analyzer frequency range | 9 kHz to 2.7 GHz |
|---|---|
| Instantaneous bandwidth | 20 MHz |
| Instrument width | 4 slots |
| Bus connection listed by NI | PXI Hybrid |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Modular instrumentation platform
RF vector signal analyzer
RF downconverter
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. NI identifies the PXI-5661 as an RF vector signal analyzer.
The instrument comprises the PXI-5600 RF downconverter and PXI-5142 IF digitizer. Confirm the supplied hardware separately.
NI specifies NI-RFSA as the instrument driver used to program the PXI-5661.
