PXI-5620

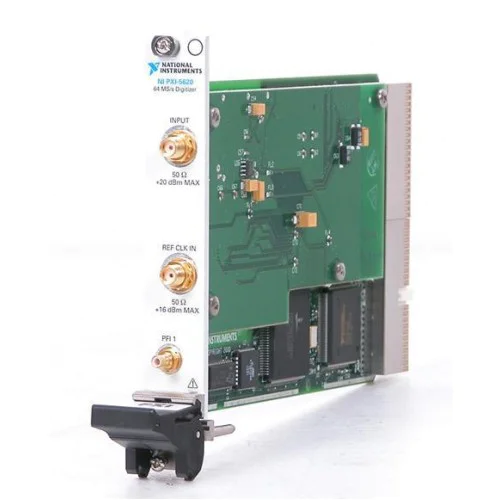

National Instruments PXI-5620 64 MS/s, 14-Bit Frequency-Domain Digitizer
Features

• 1 Analog Input Channel, 14-Bit Resolution
• 80 dB Spurious-Free Dynamic Range
• 1 kS/s to 64 MS/s Sampling Rate
• 10 kHz to 36 MHz (-3 dB Bandwidth)
• AC Coupled, 50 Ω Input
• 16 or 32 Million Sample Acquisition

The National Instruments PXI-5620 is a single-channel PXI digitizer for a broad range of applications in research, product design and validation, and manufacturing test. Its dynamic range and resolution make it ideal for all types of frequency-domain analysis. It is well suited for applications ranging from ultrasound and high-resolution ATE to broadband communications test, such as cable, DSL, and wireless test. Because the NI PXI-5620 is based on the PXI platform, it can be integrated with other PXI hardware from National Instruments and other PXI vendors.
Part Numbers: 185701F-01, 185701G-01, 185701C-01
