National Instruments · PXI

PXI-5441

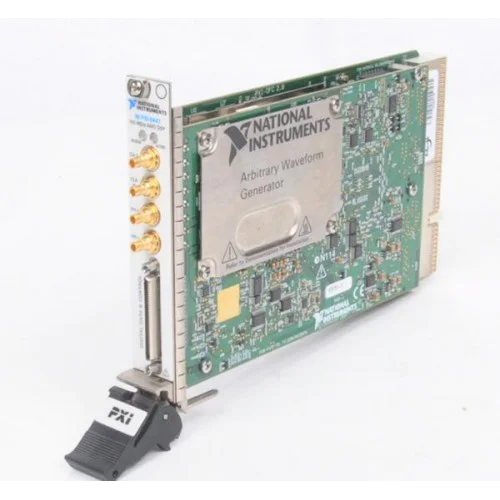

The National Instruments PXI-5441 is a single-channel, 100 MS/s, 16-bit arbitrary waveform generator with 43 MHz bandwidth. Its onboard signal processing supports interpolation and quadrature digital upconversion.

ManufacturerNational Instruments

ModelPXI-5441

Product TypeArbitrary waveform generator

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-5441

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Output channels1 analog output

Maximum update rate100 MS/s

Resolution16-bit

Bandwidth43 MHz

Maximum output amplitude12 V peak-to-peak into 50 Ω

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-5441 generates user-defined arbitrary waveforms and standard sine, square, triangle, and ramp functions. It combines waveform generation with onboard processing rather than relying solely on stored waveform playback.

Processing functions include FIR and CIC interpolation filters, digital prefilter gain, a numerically controlled oscillator, and I/Q mixing. Synchronization features include locking to external clocks or PXI_CLK10 and TClk synchronization.

Quadrature digital upconversion using onboard I/Q mixing and a numerically controlled oscillator.
FIR and CIC interpolation filters with digital prefilter gain.
Waveform linking and looping for arbitrary waveform generation.
Software-selectable 50 Ω or 75 Ω output impedance.

Verified specifications

Technical data

Verified product specifications.

Analog output channels	1 channel
Analog output resolution	16 bit
Maximum analog update rate	100 MS/s
Maximum bandwidth	43 MHz
Maximum output amplitude into 50 Ω	12 V peak-to-peak
Selectable output impedance	50 or 75 Ω

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-5441

Arbitrary waveform generation with onboard signal processing

Driver family

NI-FGEN

Confirm the installed memory option and the NI-FGEN release requirements before system integration.
