National Instruments · PXI

PXI-5412

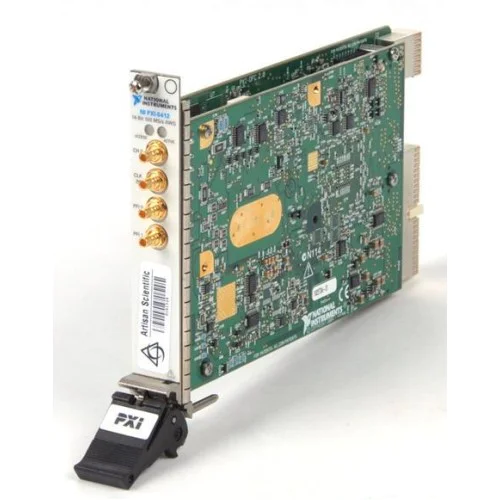

The National Instruments PXI-5412 is a 100 MS/s, 14-bit arbitrary waveform generator for the PXI platform. Manufacturer-listed variants provide 8 MB, 32 MB, or 256 MB of waveform memory; the installed memory in this catalog unit has not been identified.

ManufacturerNational Instruments

ModelPXI-5412

Part Number779176-01 · 779176-02

Product TypeArbitrary waveform generator

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-5412

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Generation rate100 MS/s

Resolution14-bit

PlatformPXI

Memory variants8 MB, 32 MB, or 256 MB; unit configuration unconfirmed

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-5412 provides arbitrary waveform generation at 100 MS/s with 14-bit resolution. It is the PXI model in the NI 5412 family and should not be confused with the separate PCI-5412 board.

NI documentation lists the NI 5412 with standard function outputs including sine, square, triangle, ramp up, DC, noise, and user-defined waveforms. NI-FGEN documentation also explicitly identifies the PXI-5412 as supported arbitrary waveform generator hardware.

100 MS/s arbitrary waveform generation.
14-bit waveform resolution.
Standard function generation includes sine, square, triangle, ramp up, DC, noise, and user-defined waveforms.
Manufacturer-listed waveform memory options of 8 MB, 32 MB, and 256 MB.

Verified specifications

Technical data

Verified product specifications.

Waveform generation rate	100 MS/s
Resolution	14 bit
Manufacturer memory variants	8 / 32 / 256 MB
Maximum standard sine-wave frequency	20 MHz
Maximum standard square-wave frequency	5 MHz

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-5412

Arbitrary waveform generator

Driver ecosystem

NI-FGEN documentation explicitly lists PXI-5412 support.

Confirm the unit's memory option and the selected chassis, driver version, and operating system before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-FGEN 2.4 Readme — supported hardwareDriver Readme · download.ni.com

Open →

InstrumentStudio 2019 ReadmeSoftware Readme · download.ni.com

Open →

NI PXI Arbitrary Waveform Generator FeaturesTechnical Overview · ni.com

Open →

NI arbitrary waveform generator features and waveform memory conceptsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What are the PXI-5412 generation rate and resolution?

NI lists the PXI-5412 as a 100 MS/s, 14-bit arbitrary waveform generator.

How much waveform memory does this unit have?

The supplied catalog record does not identify the installed memory. NI lists 779176-01 with 8 MB, 779176-02 with 32 MB, and 779176-03 with 256 MB. Confirm the unit's part number before selecting a memory-dependent configuration.

Is the PXI-5412 the same physical product as the PCI-5412?

No. NI lists PXI-5412 and PCI-5412 separately, with different part-number series. This catalog record identifies the PXI-5412.

Which NI software documentation explicitly lists PXI-5412 support?

The NI-FGEN 2.4 readme and InstrumentStudio 2019 readme both list PXI-5412. These references establish support in those specific releases, not universal compatibility with every driver or operating-system version.
