National Instruments PXI-5421 Arbitrary waveform generator

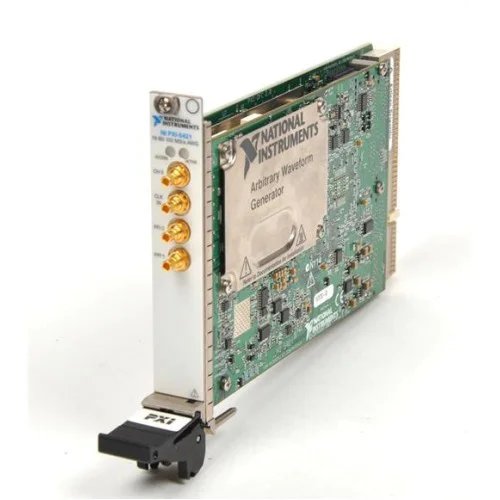

1 image: Click to enlarge
National Instruments · PXI

PXI-5421

The National Instruments PXI-5421 is a 100 MS/s, 16-bit arbitrary waveform generator for PXI systems. Its one-slot, 3U module format supports integration into modular instrumentation systems.

ManufacturerNational Instruments
ModelPXI-5421
Part Number778697-01
Product TypeArbitrary waveform generator
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-5421

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Update rate100 MS/s
Resolution16-bit
Bandwidth43 MHz
Form factor3U, one-slot PXI/cPCI module
Output amplitude12 V peak-to-peak into 50 Ω
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-5421 generates standard and user-defined waveforms with 16-bit resolution and a 100 MS/s update rate. NI identifies communications, consumer electronics, semiconductor, video, and scientific research as application areas.

Built on NI's Synchronization and Memory Core architecture, the PXI-5421 participates in mixed-signal systems with other SMC-based instruments. The architecture provides waveform data handling, trigger and marker routing, and waveform linking and looping.

Memory capacity is configuration-dependent. NI's historical ordering information identifies 778697-01 as the 8 MB configuration; the supplied catalog identifiers do not independently establish the installed memory configuration of this particular module.

  • 100 MS/s waveform update rate with 16-bit resolution.
  • Standard and user-defined waveform generation.
  • Output amplitude of 12 V peak-to-peak into a 50 Ω load.
  • SMC architecture supports waveform linking and looping, event triggering, and marker routing.
  • Compact 3U module occupies one PXI slot.
