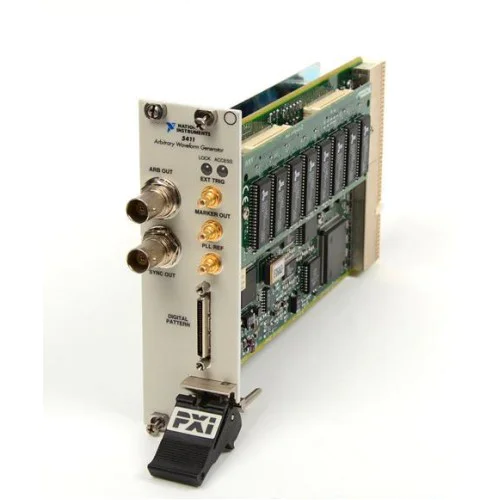

The National Instruments PXI-5411 is a single-channel PXI arbitrary waveform generator with 12-bit analog output and an update rate up to 40 MS/s.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PXI-5411 provides arbitrary waveform generation within the NI PXI platform. It is distinct from the PXI-5431 video waveform generator, although NI documents both models in a shared specification sheet.
Software planning should use model-specific support tables rather than general NI-FGEN system requirements. The NI-FGEN 16.0 readme lists the PXI-5411 with support on 64-bit Windows 10, 8.1, and 7, but not their 32-bit editions.
Verified product specifications.
| Analog output channels | 1 |
|---|---|
| Analog output resolution | 12 bit |
| Maximum arbitrary waveform update rate | 40 MS/s |
| DDS accumulator width | 32 bit |
| Output voltage range | ±5 V into 50 Ω; ±10 V into high impedance |
| Minimum arbitrary segment length | 256; multiples of 8 samples |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Platform
Arbitrary waveform generator
NI-FGEN 16.0 includes a model-specific hardware support table.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. NI identifies the PXI-5411 as an arbitrary waveform generator and the PXI-5431 as a video waveform generator.
The NI-FGEN 16.0 readme explicitly excludes NI PXI/PCI-5411 devices from its listed LabVIEW Real-Time and LabWindows/CVI Real-Time support.
