PXI-2512

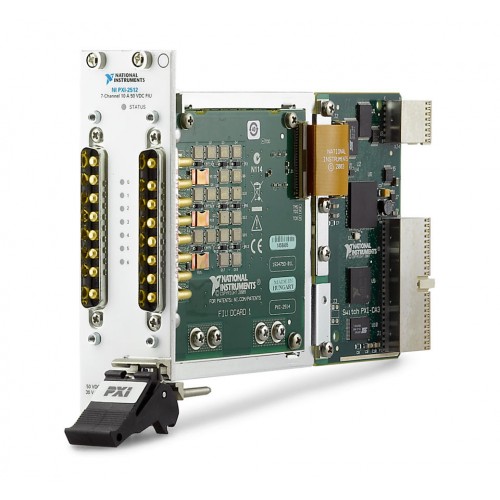

The NI PXI-2512 is a seven-channel fault insertion unit for hardware-in-the-loop and electronic reliability testing. Its feedthrough channels support simulated interruptions and shorts through two fault buses.

ManufacturerNational Instruments

ModelPXI-2512

Product TypePXI signal insertion switch module / fault insertion unit

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2512

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Channels7 fault insertion channels

Continuous current10 A per channel or common

Switching voltage50 VDC / 30 VAC rms maximum

Switch technologyFET

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-2512 sits between test equipment and a device under test. Closed feedthrough paths provide normal signal connections; controlled fault states simulate open connections, pin-to-pin shorts, shorts to battery voltage and shorts to ground.

NI describes its use in validating control systems such as engine control units and full authority digital engine controls. NI also documents integration with VeriStand through fault insertion custom-device functionality.

Seven feedthrough channels with two fault buses for channel-specific fault simulation.
Supports open-circuit, pin-to-pin, battery-voltage and ground-short fault scenarios.
Includes overcurrent and overtemperature detection.

Verified specifications

Technical data

Verified product specifications.

Channel count	7 channels
Relay type	FET
Maximum switching voltage, DC	50 VDC
Maximum switching voltage, AC	30 VAC rms
Maximum continuous current	10; per channel or common, switching or carry A
Maximum switching power per channel	500; subject to voltage and current limits W
Typical bandwidth	>800; 50 Ω system kHz
DC path resistance	16 typical; 35 maximum mΩ
Front-panel connectors	Two male 8-position D-Sub connectors
Operating temperature	0 to 50 °C
