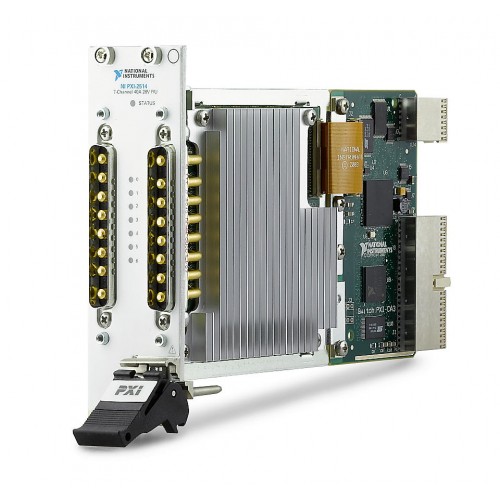

National Instruments PXI-2514 Fault insertion switch module
1 image: Click to enlarge
National Instruments · PXI

PXI-2514

The National Instruments PXI-2514 is a seven-channel fault insertion unit for hardware-in-the-loop and electronic reliability testing. Its feedthrough channels support controlled simulation of open circuits and short-circuit faults.

ManufacturerNational Instruments
ModelPXI-2514
Product TypeFault insertion switch module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2514

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Channels7
Switch technologyFET
Maximum switching voltage28 VDC / 19.8 VAC rms
Continuous current40 A with a single path closed; 25 A with multiple paths closed
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Placed between an HIL simulator and the device under test, the PXI-2514 introduces electrical faults without changing the external wiring for each test. Closed feedthrough channels provide the normal signal path; channels can then be opened or connected to either of two fault buses.

NI identifies ECU and FADEC reliability validation as applications when the unit is controlled with LabVIEW Real-Time. Supported fault scenarios include interrupted connections, pin-to-pin shorts, shorts to battery voltage, and shorts to ground.

  • Per-channel open-circuit and short-circuit fault insertion.
  • Two fault buses for configurable fault connections.
  • Overcurrent and overtemperature detection circuitry.
Verified specifications

Technical data

Verified product specifications.

Channel count7
Relay typeFET
Maximum DC switching voltage28 VDC
Maximum AC switching voltage19.8 VAC rms
Continuous switching or carry current, per channel or common40 with a single path closed; 25 with multiple paths closed A
Typical bandwidth, 50-ohm system>800 kHz
Front-panel connectorsTwo male 8-position DSUB connectors
Form factor3U, two slots
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Instrumentation platform

PXI-2514

Fault insertion unit

Do not confuse PXI-2514 with PXIe-2514. Confirm the module interface and chassis slot before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXI/PXIe-2514 SpecificationsSpecifications · download.ni.com
Open →
NI VeriStand Add-on — NI Fault Insertion UnitsApplication And Integration Guidance · ni.com
Open →
NI 2514 connector pinout, power-on state, and cycle-rate guidanceTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can every path carry 40 A simultaneously?

The specification distinguishes 40 A with a single path closed from 25 A with multiple paths closed, per channel or common. Apply the documented cooling conditions and cycle-rate limits.

Which faults can the PXI-2514 simulate?

It can simulate open or interrupted connections, pin-to-pin shorts, shorts to battery voltage, and shorts to ground on individual channels.

Can it connect directly to mains circuits?

No. NI prohibits direct mains connections and use in Measurement Categories II, III, or IV.
