PXI-2515

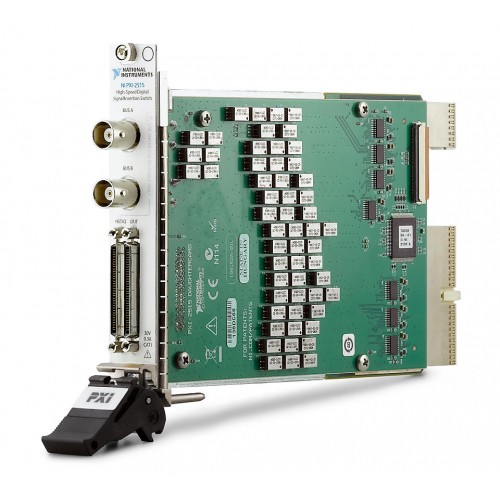

The National Instruments PXI-2515 is a high-speed digital signal insertion switch module. NI's shared PXI/PXIe-2515 documentation describes connections between supported high-speed digital I/O hardware, a device under test, and parametric measurement instruments.

ManufacturerNational Instruments

ModelPXI-2515

Product TypeHigh-speed digital signal insertion switch module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2515

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

FunctionHigh-speed digital signal insertion

TopologyIndependent topology documented by NI

HSDIO connection cableNI SHC68-C68-D5 required for supported high-speed DIO devices

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-2515 fits into NI digital test systems that combine high-speed DIO connections with parametric measurement access. NI provides shared PXI/PXIe-2515 intended-use and independent-topology documentation for planning signal connections and channel mapping.

Independent-topology documentation includes digital channel and DUT pin mappings.
Dedicated SHC68-C68-D5 cable translates the supported high-speed DIO device pinout to the NI 2515 HSDIO connector.
BNC connections provide access to external parametric measurement devices.

Verified specifications

Technical data

Verified product specifications.

Digital channel mapping	ch0 through ch31

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI-2515

Digital signal insertion switch

System connections

Supported high-speed DIO hardware, DUT connections, and parametric measurement devices

Compatibility

NI specifies the SHC68-C68-D5 cable between a supported NI high-speed DIO device and the NI 2515 HSDIO connector.

Use the specified SHC68-C68-D5 cable for the supported HSDIO connection; verify the exact module identity and chassis interface before integration.
