PCI-8517
1 image: Click to enlarge
National Instruments · PCI

PCI-8517

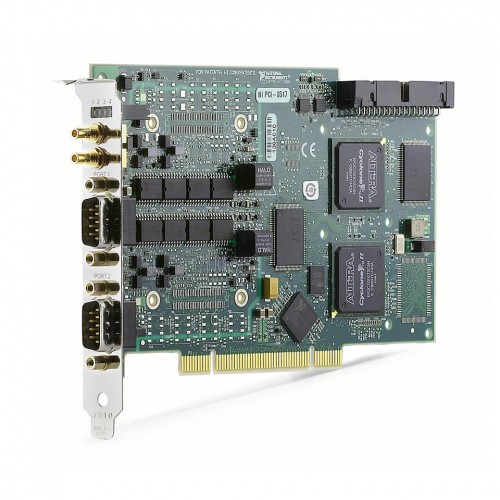

The NI PCI-8517 is a two-port FlexRay PCI interface in the NI-XNET family. Its two interfaces can connect separate FlexRay networks or support an individual ECU when other cold-start nodes are unavailable.

ManufacturerNational Instruments
ModelPCI-8517
Part Number780685-02
Product Type2-port FlexRay interface device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-8517

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Host busPCI
FlexRay interfaces2
Baud rate1–10 Mbps
Operating temperature0–55 °C
Bus powerInternally powered
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Designed for FlexRay application development, the PCI-8517 brings NI-XNET vehicle-network connectivity to PCI-based systems. NI identifies the two-port configuration as PCI-8517/2, part number 780685-02.

  • Two FlexRay interfaces for independent network connections.
  • Specified FlexRay baud rates from 1 to 10 Mbps.
  • Two NXP TJA1080 transceivers.
  • RTSI synchronization with seven trigger lines and one clock line, plus two front-panel synchronization connections.
Verified specifications

Technical data

Verified product specifications.

Host busPCI
FlexRay port count2 ports
Baud rate range1–10 Mbps
TransceiversNXP TJA1080 × 2
Dimensions10.67 × 16.76 cm
Weight102 g
Operating ambient temperature0–55 °C
Operating relative humidity10–90, noncondensing % RH
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

NI-XNET

Vehicle-network interface family and software API

PCI

Host interface

PCI-8517

Two-port FlexRay interface

Confirm PCI host requirements and NI-XNET driver support for the intended operating system before integration.
