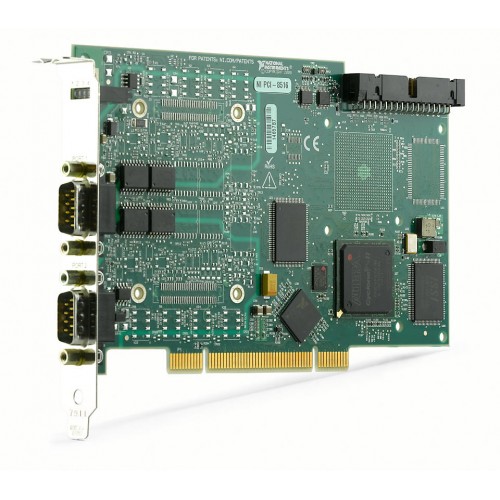

The NI PCI-8516 is a two-port PCI LIN interface device with NI-XNET driver support and a maximum baud rate of 20 kbit/s.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PCI-8516 provides two LIN ports through a PCI host connection. Listed under NI part number 781365-01, it is identified as the NI PCI-8516/2 NI-XNET LIN Interface, 2 Port.
The interface supports LIN 2.0, LIN 2.1, and LIN 2.2 physical layers. Its NI-XNET architecture supports real-time manipulation of LIN frames and signals for tasks such as hardware-in-the-loop simulation, rapid control prototyping, bus monitoring, and automation control.
Verified product specifications.
| Number of LIN Ports | 2 |
|---|---|
| Bus Connector | PCI |
| LIN Physical Layer | LIN 2.2, LIN 2.0, LIN 2.1 |
| Reconfigurable | No |
| Bus Connection | PCI |
| Operating Temperature Range | 0 °C to 55 °C |
| Maximum Baud Rate | 20 kbits/s |
| Conformal Coated | No |
| Enclosed | Yes |
| NI part numbers | 781365-01 |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Bus Connector
This product
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
The listed part number is 781365-01, identified as the NI PCI-8516/2 two-port NI-XNET LIN interface.
The PCI-8516 provides two LIN ports.
It uses a PCI bus connection.
The listed physical layers are LIN 2.0, LIN 2.1, and LIN 2.2. The maximum baud rate is 20 kbit/s.
