NI (National Instruments) · PCI

PCI-8513

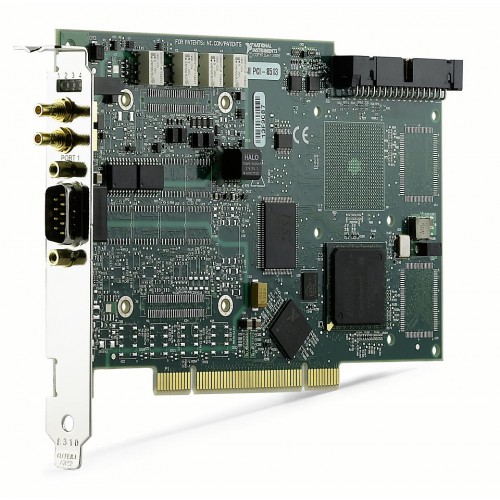

The NI PCI-8513 is a PCI CAN interface offered in one- and two-port configurations. It supports software-selectable CAN physical layers and external timing and triggering.

ManufacturerNI (National Instruments)

ModelPCI-8513

Part Number780684-02 · 780684-01

Product Type1- or 2-Port, Software-Selectable/FD CAN Interface Device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-8513

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bus ConnectorPCI

Supports External Timing And TriggeringYes

CAN Physical LayerFlexible Data-Rate, High-Speed, Low-Speed/Fault Tolerant, Single-Wire

CAN Physical Layer (cont. 2)Software-Selectable

Bus ConnectionPCI

Operating Temperature Range0 °C to 55 °C

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCI-8513 belongs to NI's CAN interface family and connects to a host computer through PCI. The supplied configuration records identify 780684-01 as the one-port version and 780684-02 as the two-port version; the model name alone does not establish the port count of an individual board.

The interface uses the NI-XNET driver and provides software-selectable CAN physical layers. External timing and triggering support allows timing requirements to be considered alongside the CAN connection when planning system integration.

PCI host-bus connection.
One- and two-port configurations identified by distinct NI part numbers.
Software-selectable CAN physical-layer operation.
Support for external timing and triggering.
Operating temperature range of 0 °C to 55 °C.

Verified specifications

Technical data

Verified product specifications.

Bus Connector	PCI
Supports External Timing And Triggering	Yes
CAN Physical Layer	Flexible Data-Rate, High-Speed, Low-Speed/Fault Tolerant, Single-Wire
CAN Physical Layer (cont. 2)	Software-Selectable
Reconfigurable	No
Bus Connection	PCI
Operating Temperature Range	0 °C to 55 °C
Maximum Baud Rate	1 MB/s
Conformal Coated	No
Enclosed	No
NI part numbers	780684-02, 780684-01
