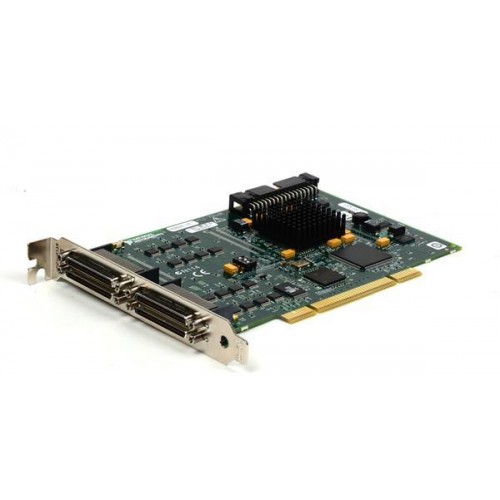

The NI PCI-7813R is a PCI digital reconfigurable I/O card with 160 digital lines and a user-programmable Virtex-II 3M-gate FPGA for onboard processing.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
LabVIEW FPGA enables individual digital lines to serve as inputs, outputs, counter/timers, PWM signals, encoder inputs, or custom communication interfaces. User-defined decision logic runs onboard.
The PCI-7813R belongs to NI's R Series. Its digital connections use four high-density VHDCI connectors, and its timebase reference comes from the onboard clock.
Verified product specifications.
| Host interface | PCI |
|---|---|
| Digital I/O channels | 160 channels |
| FPGA | Virtex-II, 3 million gates |
| FPGA slices | 14336 slices |
| Maximum digital data rate | 40 MHz |
| Digital compatibility | TTL |
| Digital output source/sink current | 4.0 mA |
| I/O connectors | Four 68-pin female high-density VHDCI |
| Dimensions excluding connectors | 17 × 11 cm |
| Operating temperature | 0 to 55 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host interface and reconfigurable I/O family
FPGA-based digital I/O card
LabVIEW FPGA for custom digital functionality.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
NI's PCI-7813 product page identifies part number 779370-01 as the PCI-7813R 3M Gate Digital RIO with 160 DIO. The catalog retains the PCI-7813R model designation.
NI lists SHC68-68-RDIO cables and SCB-68 or SCB-68A connector blocks. Follow the model-specific pinout because terminal assignments vary across R Series devices.
Yes. NI lists support for up to four NI-9151 chassis, accommodating a total of 16 CompactRIO I/O modules.
