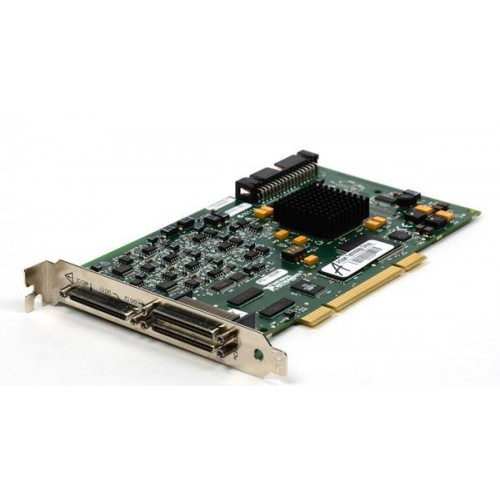

National Instruments PCI-7833R Multifunction reconfigurable I/O card
1 image: Click to enlarge
National Instruments · PCI

PCI-7833R

The National Instruments PCI-7833R is an R Series PCI reconfigurable I/O card combining eight analog inputs, eight analog outputs, and 96 digital I/O lines with a user-programmable FPGA.

ManufacturerNational Instruments
ModelPCI-7833R
Product TypeMultifunction reconfigurable I/O card
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-7833R

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
FPGAVirtex-II V3000
Analog inputs8 channels, 16-bit, up to 200 kS/s per channel
Analog outputs8 channels, 16-bit, up to 1 MS/s
Digital I/O96 TTL-compatible lines
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Unlike fixed-function I/O hardware, the PCI-7833R uses an FPGA to define device functionality and timing. Its independent analog input and output channels and digital lines provide a configurable mixed-signal interface.

The LabVIEW FPGA Module supports creation of custom FPGA VIs. Onboard Flash memory can store a startup VI configured to load and run when the device powers up.

  • User-defined I/O functionality and timing through a reconfigurable FPGA.
  • Independent analog input and analog output channels.
  • Software-selectable differential, RSE, or NRSE analog input mode.
  • Flash-based startup VI storage for power-up execution.
Verified specifications

Technical data

Verified product specifications.

FPGAVirtex-II V3000
Analog input channels8 channels
Analog input resolution16 bits
Maximum analog input sampling rate200 per channel kS/s
Analog input range±10 V
Analog output channels8 channels
Analog output resolution16 bits
Maximum analog output update rate1 MS/s
Analog output range±10 V
Digital I/O lines96 lines
Digital compatibilityTTL
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI R Series

Host interface and reconfigurable I/O family

PCI-7833R

Multifunction FPGA I/O card

FPGA development

LabVIEW FPGA Module for creating custom FPGA VIs.

Verify the host slot, software release support, and connector-specific wiring before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI R Series Multifunction RIO SpecificationsSpecifications · download.ni.com
Open →
Getting Started with the NI 783xRGetting-started Guide · download.ni.com
Open →
NI 783xR setup and connector pin assignmentsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
PCI-7831RView product →
Related model
PCI-7830RView product →

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the 200 kS/s analog input rate shared across all inputs?

No. NI specifies a maximum sampling rate of 200 kS/s per analog input channel.

What is required to create custom FPGA logic?

NI documents the LabVIEW FPGA Module as required to develop custom FPGA VIs. LabVIEW alone can control existing FPGA VIs but cannot create new FPGA VIs.

Can the card run an FPGA VI at power-up?

Yes. A startup VI can be stored in onboard Flash memory and configured to load and run at power-up.
