National Instruments · PCI

PCI-7811R

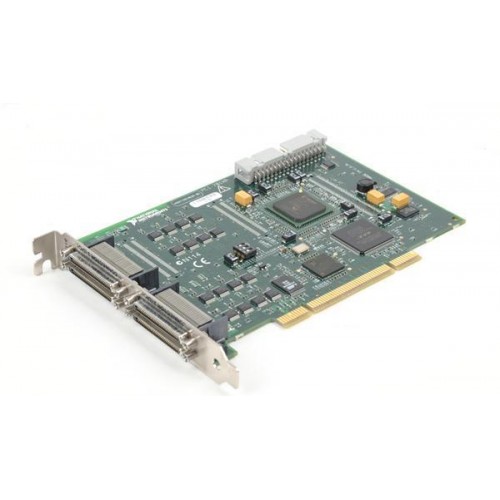

The National Instruments PCI-7811R is an R Series PCI reconfigurable digital I/O board with 160 digital lines and a Virtex-II V1000 FPGA. Its programmable hardware supports custom digital input/output, counter/timer, and pulse-width modulation functions.

ManufacturerNational Instruments

ModelPCI-7811R

Part Number779363-01

Product TypeReconfigurable digital I/O board

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-7811R

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Host interfacePCI

Digital I/O160 TTL-compatible lines

FPGAVirtex-II V1000

ConnectionsFour 68-pin female VHDCI connectors

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCI-7811R provides FPGA-based digital I/O within the NI R Series family. NI identifies the 781xR family as digital-only, distinguishing it from R Series multifunction devices with analog inputs and outputs.

NI documents LabVIEW FPGA and NI-RIO software support for this model. Confirm the complete software and operating-system combination before integrating the board into an existing system.

Reconfigurable digital lines support input, output, counter/timer, and pulse-width modulation functions.
Virtex-II FPGA provides a 1-million-gate architecture for user-defined hardware logic.
LabVIEW FPGA programming is supported for the PCI-7811R.

Verified specifications

Technical data

Verified product specifications.

Digital channels	160 lines
Digital logic compatibility	TTL
FPGA	Virtex-II V1000
Digital output current	4.0 source; 4.0 sink mA
Digital power-on state	Programmable by line
Minimum input pulse width	25 ns
Minimum output pulse width	12.5 ns
I/O connectors	Four 68-pin female high-density VHDCI
Dimensions excluding connectors	17 × 11 cm
Operating temperature	0 to 55 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI R Series

Host interface and reconfigurable I/O family

PCI-7811R

160-line digital RIO board

Programming ecosystem

LabVIEW FPGA with NI-RIO support

Check model-specific pinouts, cable selection, and software-version support before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI R Series Multifunction RIO SpecificationsSpecifications · download.ni.com

Open →

NI 78xx Models: R Series Cable and Accessory CompatibilityAccessory Guide · ni.com

Open →

Software Support for cRIO Devices and R Series DevicesHistorical Software Support Reference · download.ni.com

Open →

NI 78xxR and NI 78xx Pinout Labels for the SCB-68Technical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PCI-7811R provide analog I/O?

No. NI identifies the 781xR family as reconfigurable digital I/O without analog input or output channels.

How does the PCI-7811R differ from the PCI-7813R?

Both have 160 digital lines. The PCI-7811R uses a Virtex-II V1000 FPGA, while the PCI-7813R uses a larger Virtex-II V3000 FPGA.

Which connection accessories does NI list for this model?

NI's accessory guide lists SHC68-68-RDIO cabling and SCB-68 or SCB-68A connector blocks for PCI-7811. Consult the guide and connector-specific pinout before wiring.
