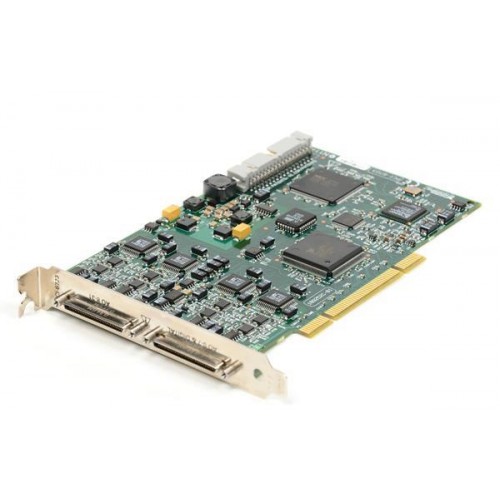

The National Instruments PCI-6723 is a PCI analog output board with 32 voltage-output channels and 13-bit resolution. It supports static output and buffered waveform generation.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PCI-6723 belongs to NI's Analog Output Series. Its output subsystem supports software-controlled voltage updates and hardware-timed waveform generation, with onboard buffering and sample-clock control.
Waveform performance depends on channel count and data source. NI specifies 800 kS/s for one channel and 204 kS/s per channel for 32-channel local-FIFO generation. Its host-memory benchmark gives 45 kS/s per channel at 32 channels; host and bus activity can affect this result.
Verified product specifications.
| Analog output channels | 32 channels |
|---|---|
| Output resolution | 13 bits |
| Voltage output range | -10 to +10 V |
| Maximum update rate, one channel | 800 kS/s |
| Maximum update rate, 32 channels, local FIFO | 204 per channel kS/s |
| Digital I/O channels | 8 channels |
| Counter/timers | 2, 24-bit |
| I/O connectors | 2 × 68-pin VHDCI |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host bus
Analog output board
NI-DAQmx 20.0 lists NI 6723 PCI hardware in its supported AO Series devices.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
Yes. The AO Series manual describes software-controlled single-point output and buffered waveform generation for this device family, including PCI-6723.
NI lists the SH68-C68-S shielded cable for both connector 0 and connector 1. Select terminal accessories using the connector-specific compatibility table and pinout.
