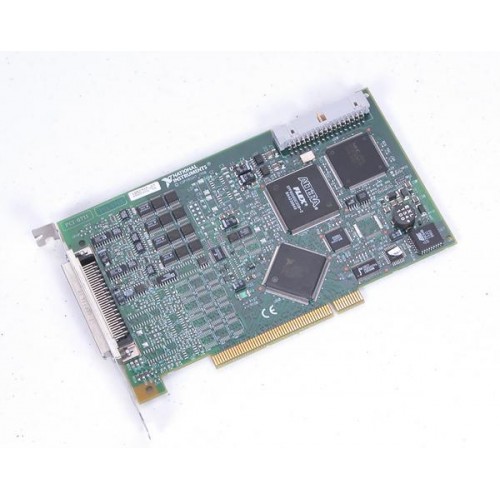

National Instruments PCI-6711 Analog output card
1 image: Click to enlarge
National Instruments · PCI

PCI-6711

The National Instruments PCI-6711 provides four 12-bit analog outputs with simultaneous multichannel updates at up to 1 MS/s. It also includes digital I/O and counter/timer functions.

ManufacturerNational Instruments
ModelPCI-6711
Part Number777740-01
Product TypeAnalog output card
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6711

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog outputs4 channels, 12-bit resolution
Maximum update rate1 MS/s
Digital I/O8 TTL/CMOS lines
Counters2 × 24-bit, 20 MHz
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Designed for control and waveform output, the PCI-6711 supports individually defined channel data for standard or complex waveforms. Digital triggering and external clocking help coordinate output timing.

  • Simultaneous multichannel analog output updates.
  • Digital triggering and external clocking.
  • Programmable square, sine, sawtooth, and complex waveforms.
Verified specifications

Technical data

Verified product specifications.

Analog output channels4 channels
Analog output resolution12 bits
Maximum analog update rate1 MS/s
Voltage output ranges±10 V; ±external reference
Output current drive±5 maximum mA
FIFO buffer8192 samples
Digital I/O8 bidirectional TTL/CMOS lines
Counter/timers2 up/down counters; 24-bit resolution; 20 MHz maximum source frequency
Bus interface5 V PCI master/slave
I/O connector68-pin male SCSI-II type
Dimensions excluding connectors17.5 × 10.7 cm
Operating temperature0 to 50 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

5 V PCI

Host bus

PCI-6711

Analog output card

Synchronization

PCI RTSI bus: seven trigger lines and one clock.

Check host support for the specified 5 V PCI interface and verify driver/operating-system support before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PCI-6711 Product PageProduct Page · ni.com
Open →
NI 6711/6713/DAQCard-6715 SpecificationsSpecifications PDF · docs-be.ni.com
Open →
Electrical Specifications and Device PinoutsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What output voltage ranges does the PCI-6711 support?

The specifications list ±10 V and ±external-reference ranges.

Does the PCI-6711 support external timing?

Yes. NI specifies digital triggering and external clocking.

Can all four outputs update at 1 MS/s?

NI lists 1,000 kS/s for four-channel operation using local FIFO or host memory. Host-memory performance can vary with CPU and bus activity.
