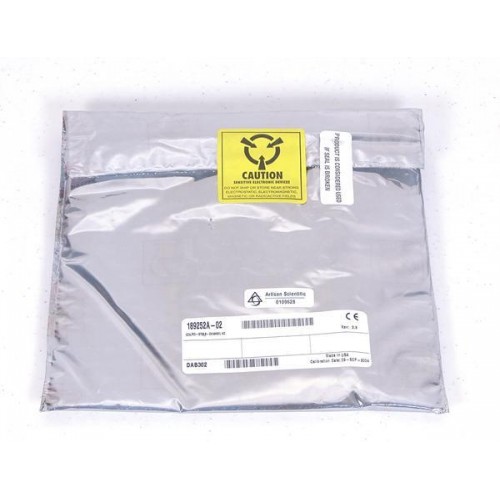

PCI-6722

The National Instruments PCI-6722 is an eight-channel, 13-bit analog output card for simultaneous multichannel control and waveform generation. It also provides digital I/O, counter/timers, digital triggering and external clocking.

ManufacturerNational Instruments

ModelPCI-6722

Product TypeAnalog output card

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6722

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog outputs8 voltage channels

Resolution13 bits

Maximum update rate800 kS/s with one channel

Digital I/O8 TTL/CMOS lines

Counter/timersTwo 24-bit, 20 MHz counter/timers

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCI-6722 supports simultaneous multichannel updates for stimulus-response testing, power supply control, deterministic control and sensor or signal simulation. Individual data points can define standard waveforms or more complex output patterns.

Update performance depends on channel count and waveform storage. For eight channels, NI specifies 476 kS/s per channel using the local FIFO and a measured 182 kS/s per channel using host memory; host-memory performance depends on the computer and bus activity.

Simultaneous multichannel analog output updates.
Programmable waveform points for square, sine, sawtooth and complex signals.
Digital triggering and external clocking capabilities.

Verified specifications

Technical data

Verified product specifications.

Analog output channels	8 channels
Analog output resolution	13 bits
Voltage output range	±10 V
Maximum single-channel update rate	800 kS/s
Eight-channel update rate, local FIFO	476 per channel kS/s
Eight-channel update rate, host memory	182 per channel; measured on NI's specified test system, system-dependent kS/s
FIFO capacity	2047 samples
Slew rate	0.7 V/µs
Bus interface	3.3 V or 5 V PCI master/slave
I/O connector	One 68-pin VHDCI
