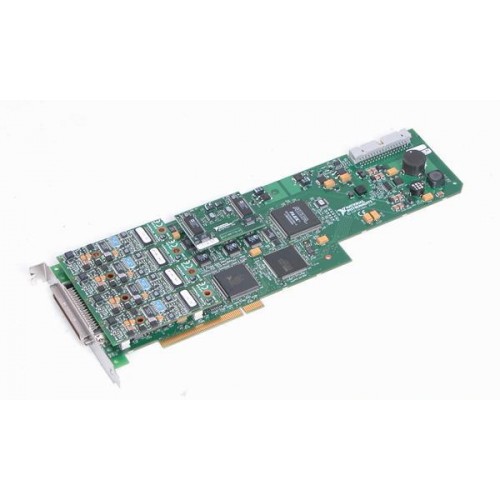

National Instruments PCI-6110 / PCI-6110E Simultaneous-sampling multifunction DAQ device
1 image: Click to enlarge
National Instruments · PCI

PCI-6110 / PCI-6110E

The National Instruments PCI-6110 / PCI-6110E is a PCI multifunction DAQ device with four simultaneous 12-bit analog inputs at up to 5 MS/s per channel. It also provides two analog outputs, eight digital I/O lines and two 24-bit counters.

ManufacturerNational Instruments
ModelPCI-6110 / PCI-6110E
Part Number777475-01 · 780972-01
Product TypeSimultaneous-sampling multifunction DAQ device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6110 / PCI-6110E

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog acquisition4 simultaneous inputs, 12-bit, up to 5 MS/s/ch
Input ranges±0.2 V to ±42 V
Analog output2 channels, 16-bit
Digital and timing I/O8 digital I/O lines; 2 × 24-bit counters
Host requirementFull-length PCI slot clearance
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-6110 combines simultaneous analog acquisition with analog output, digital I/O and counter functions. NI identifies synchronized stimulus/response measurement as a product application.

This device belongs to NI's 61xx multifunction I/O family, formerly called S Series. NI's accessory guide identifies the PCI-6110 as formerly referred to as the NI 6110E, supporting the catalog's retained PCI-6110 / PCI-6110E naming.

  • Simultaneous sampling across four analog input channels.
  • AC or DC input coupling.
  • Two voltage outputs with a ±10 V output range.
  • Analog and digital triggering.
Verified specifications

Technical data

Verified product specifications.

Analog inputs4 pseudodifferential
Analog input resolution12 bit
Maximum sampling rate per channel5 MS/s
Analog input ranges±0.2, ±0.5, ±1, ±2, ±5, ±10, ±20, ±42 V
Analog outputs2 channels, 16-bit, ±10 V
Maximum analog output update rate4 MS/s with one channel; 2.5 MS/s with two channels; system dependent
Digital I/O8 input/output lines; TTL/CMOS
Counter/timers2 counters, 24-bit
I/O connector68-pin male SCSI-II type
Dimensions excluding connectors31.2 × 10.6 cm
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI

Host bus

PCI-6110 / PCI-6110E

61xx simultaneous-sampling multifunction I/O device

Connection group

NI accessory-guide Group 1: 68-pin SCSI simultaneous-sampling 61xx devices

Check full-length PCI clearance and the model-specific NI cable/accessory table before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PCI-6110 Product PageProduct Page · ni.com
Open →
NI PCI-6110/6111 SpecificationsSpecifications PDF · docs-be.ni.com
Open →
NI 61xx Cable and Accessory Compatibility GuideTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
PCI-6111 / PCI-6111EView product →
Related model
PCI-6115View product →

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does 5 MS/s apply to each analog input?

Yes. NI specifies 5 MS/s per channel with simultaneous sampling across the four analog inputs.

Why does this catalog record include PCI-6110E?

NI's official accessory guide lists the PCI-6110 as formerly referred to as the NI 6110E. The catalog retains both names.

What physical installation space is required?

NI requires clearance for a full-length PCI module. Board dimensions excluding connectors are 31.2 × 10.6 cm.
