PCI-6111 / PCI-6111E

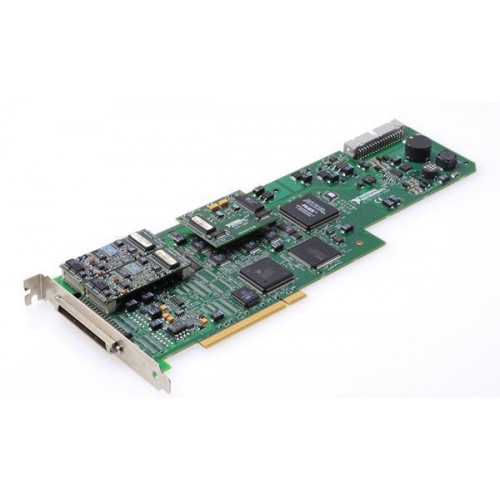

The NI PCI-6111 is a multifunction PCI DAQ device with two simultaneous-sampling, 12-bit analog inputs rated up to 5 MS/s per channel. This catalog record also names PCI-6111E; confirm the board designation before applying variant-specific specifications.

ManufacturerNational Instruments

ModelPCI-6111 / PCI-6111E

Product TypeSimultaneous-sampling multifunction DAQ device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6111 / PCI-6111E

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs2 simultaneous-sampling channels

Input performance12-bit; up to 5 MS/s/ch

Analog outputs2 channels, 16-bit

Digital and timing I/O8 digital I/O lines; two 24-bit counters

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCI-6111 combines analog acquisition, analog output, digital I/O and counter functions in a full-length PCI board. NI identifies synchronized stimulus/response testing as a relevant application.

The specifications below describe PCI-6111 unless otherwise stated. The combined catalog name is retained, but does not establish that PCI-6111 and PCI-6111E have identical electrical characteristics.

Simultaneous acquisition on two analog input channels.
Analog output, digital I/O and counter functions on one PCI device.
AC or DC input coupling on PCI-6111.

Verified specifications

Technical data

Verified product specifications.

PCI-6111 analog input configuration	2 pseudodifferential channels
PCI-6111 analog input resolution	12 bit
PCI-6111 maximum sampling rate per channel	5 MS/s
PCI-6111 analog outputs	2 channels; 16-bit; ±10 V
PCI-6111 maximum analog output update rate	4 MS/s with one channel; 2.5 MS/s with two channels; system dependent
PCI-6111 digital I/O	8 lines; TTL/CMOS
PCI-6111 counters/timers	2 counters; 24-bit resolution
PCI-6111 I/O connector	68-pin male SCSI-II type
PCI-6111 dimensions, excluding connectors	31.2 × 10.6 cm

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI

Host interface

PCI-6111

Multifunction DAQ board

Host clearance

PCI-6111 requires space for a full-length PCI module.

Confirm the exact board designation, PCI slot clearance and driver/OS combination before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PCI-6111 Product PageProduct Page · ni.com

Open →

NI PCI-6110/6111 SpecificationsSpecifications PDF · docs-be.ni.com

Open →

NI-DAQmx 8.6 Readme and Supported HardwareTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does PCI-6111 sample both inputs simultaneously?

Yes. NI specifies two simultaneous-sampling analog inputs, each supporting up to 5 MS/s at 12-bit resolution.

Do these specifications also verify PCI-6111E?

No. The specification document used here explicitly covers PCI-6110 and PCI-6111. Confirm PCI-6111E characteristics using documentation matched to the actual board.

What physical space does PCI-6111 require?

It requires a host that accommodates a full-length PCI module.
