PCI-6115

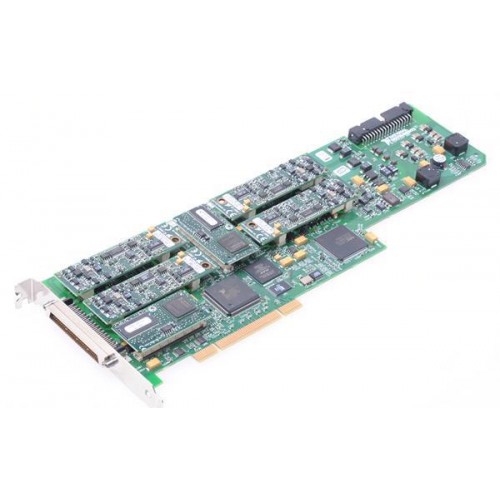

The NI PCI-6115 is a PCI multifunction DAQ device with four simultaneous-sampling, 12-bit analog inputs at up to 10 MS/s per channel. It also provides two analog outputs, eight bidirectional digital channels and two counters/timers.

ManufacturerNI (National Instruments)

ModelPCI-6115

Part Number778534-01 · 778554-01

Product Type4 AI (12-Bit, 10 MS/s/ch), 2 AO, 8 DIO, PCI Multifunction I/O Device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6115

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bidirectional Digital Channels8

Supported Power InputBus Powered

Number of Counters/Timers2

Max Differential Analog Input Channels4

Analog Input Absolute Accuracy184 mV

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCI-6115 combines high-speed simultaneous analog acquisition with analog output, digital I/O and counter/timer functions on a PCI device. Its four differential inputs provide 12-bit resolution at a maximum sampling rate of 10 MS/s per channel.

Two analog output channels, eight bidirectional digital channels and two counters/timers complement the analog inputs. The device uses a PCI bus connection and a SCSI-type front connection; system planning should include verification of host, driver and signal-connection requirements.

Four differential analog input channels with simultaneous sampling.
12-bit analog input resolution with a maximum sample rate of 10 MS/s per channel.
Two analog output channels with a maximum analog update rate of 4 MS/s.
Eight bidirectional digital channels and two counters/timers.
Bus-powered PCI interface with a SCSI-type front connection.

Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels	8
Supported Power Input	Bus Powered
Number of Counters/Timers	2
Maximum Number of Differential Analog Input Channels	4
Analog Input Absolute Accuracy	184 mV
Maximum Sample Rate	10 MS/s/ch
Simultaneous Sampling	Yes
Enclosed	Yes
Analog Input Resolution	12 bits
Bus Connector	PCI
Front Connection Type	SCSI Type
Number of Analog Output Channels	2
Maximum Analog Update Rate	4 MS/s
Bus Connection	PCI
Analog Input Voltage Range	-42 V to 42 V, -20 V to 20 V, -10 V to 10 V, -5 V to 5 V, -2 V to 2 V
Analog Input Voltage Range (cont. 2)	-1 V to 1 V, -0.5 V to 0.5 V, -0.2 V to 0.2 V
NI part numbers	778534-01, 778554-01
