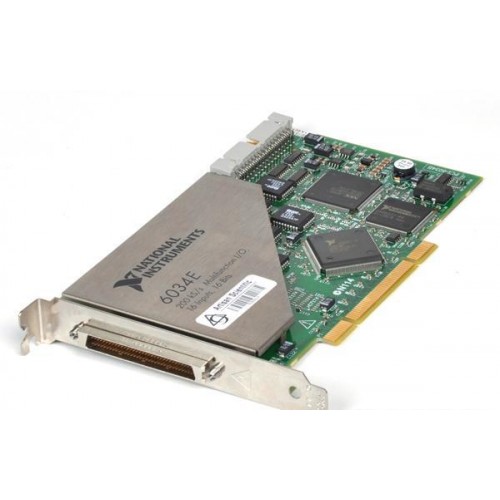

National Instruments PCI-6034E Multifunction data acquisition device
1 image: Click to enlarge
National Instruments · PCI

PCI-6034E

The National Instruments PCI-6034E is a PCI data acquisition device with 16-bit analog input at up to 200 kS/s, eight digital I/O lines and two counters/timers. This model has no analog outputs.

ManufacturerNational Instruments
ModelPCI-6034E
Part Number778075-01 · 186169-02
Product TypeMultifunction data acquisition device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6034E

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs16 single-ended or 8 differential
Input resolution16-bit
Maximum sampling rate200 kS/s
Digital I/O8 lines
Counters/timersTwo 24-bit
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-6034E combines voltage acquisition, digital I/O and counter/timer functions on a PCI board. NI identifies laboratory automation, research, design verification and manufacturing test as application areas.

NI describes SCC and SCXI signal conditioning as options for adding sensor and high-voltage measurement capability. Select the conditioning hardware and interconnections for the intended measurement rather than connecting such signals directly.

  • Software-selectable single-ended or differential input configuration.
  • Four bipolar voltage input ranges.
  • Eight digital I/O lines with 5 V TTL/CMOS compatibility.
  • Two 24-bit counters/timers.
Verified specifications

Technical data

Verified product specifications.

Bus interfacePCI
Analog input channels16 single-ended or 8 differential
Analog input resolution16 bit
Maximum analog input sampling rate200 kS/s
Analog input ranges±10, ±5, ±0.5, ±0.05 V
Input couplingDC
Analog input FIFO512 samples
Digital I/O lines8
Counter/timer resolution24 bit
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI

Host interface

PCI-6034E

Multifunction DAQ device

Driver evidence

Listed in the NI-DAQmx 8.5 supported-device documentation.

Check the intended driver and operating-system combination before integration; historical driver support does not establish current software compatibility.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PCI-6034E Official Product PageProduct Page · ni.com
Open →
NI 6034E/6035E/6036E Family SpecificationsSpecifications · download.ni.com
Open →
NI-DAQmx 8.5 Readme and Supported DevicesTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
PCI-6035EView product →
Related model
PCI-6036EView product →

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PCI-6034E provide analog outputs?

No. The family specifications restrict analog outputs to the 6035E and 6036E models.

Which part numbers does NI list for this model?

NI lists 778075-01 for the Multifunction I/O and NI-DAQ package and 186169-02 for the Hardware Only Kit. These identifiers do not establish the contents of this catalog item.
