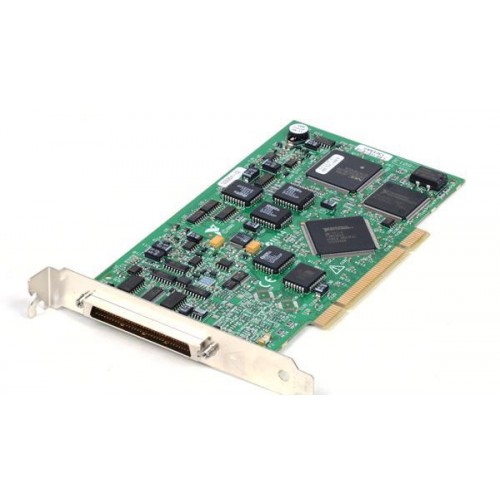

National Instruments PCI-6013 Multifunction data acquisition card
1 image: Click to enlarge
National Instruments · PCI

PCI-6013

The National Instruments PCI-6013 is a PCI multifunction DAQ card combining analog input, digital I/O, two counters and digital triggering. It supports voltage acquisition alongside digital and counter/timer operations.

ManufacturerNational Instruments
ModelPCI-6013
Part Number778629-01 · 188626-02
Product TypeMultifunction data acquisition card
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6013

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog acquisition16 analog inputs, 16-bit resolution
Maximum sampling rate200 kS/s
Digital I/O8 bidirectional lines
CountersTwo 24-bit counters
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-6013 fits PC-based measurement systems that need analog acquisition with digital and counter/timer functions. NI identifies laboratory automation, research, design verification and manufacturing test as product applications.

Historical NI-DAQmx documentation explicitly lists PCI-6013 support. Driver selection should be checked against the intended operating system and application software rather than assumed from the device name.

  • Analog input acquisition at up to 200 kS/s.
  • 16-bit analog input resolution.
  • Digital triggering for measurement coordination.
  • Digital and counter/timer operations can run alongside analog input operations.
Verified specifications

Technical data

Verified product specifications.

Host interfacePCI
Analog input configuration16 single-ended or 8 differential; software-selectable per channel
Analog input resolution16 bits
Maximum sampling rate200 kS/s
Analog input ranges±10 V, ±5 V, ±500 mV, ±50 mV
Input couplingDC
Analog input FIFO512 samples
Digital I/O lines8
Counter/timers2 counters, 24-bit resolution
Analog output channels0; analog output is provided on the NI 6014 only
I/O connector68-pin male SCSI-II type
Operating temperature0 to 55 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI

Host bus

PCI-6013

Multifunction DAQ card

Driver evidence

PCI-6013 is explicitly listed in the NI-DAQmx 8.6 supported-device documentation.

Confirm host PCI requirements, driver/OS support and accessory pin assignments before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PCI-6013 Product PageManufacturer Product Page · ni.com
Open →
NI 6013/6014 Family SpecificationsSpecifications And Pinouts · download.ni.com
Open →
NI-DAQmx 8.6 ReadmeHistorical Driver Support Reference · download.ni.com
Open →
PCI-6013 Pinout: NI 6013/6014 Family Specifications, Figure 1Technical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
PCI-6014View product →
Related model
PCI-6023EView product →

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PCI-6013 provide analog outputs?

No. The shared family specification identifies analog output as an NI 6014-only feature.

Can the PCI-6013 be simulated in NI-DAQmx 8.6?

No. The NI-DAQmx 8.6 readme lists PCI-6013 support but explicitly excludes simulated-device capability for this model.
