National Instruments PCI-6023E Multifunction data acquisition device

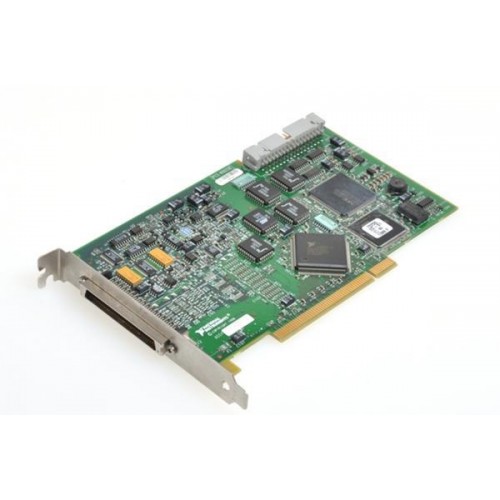

1 image: Click to enlarge
National Instruments · PCI

PCI-6023E

The National Instruments PCI-6023E is a PCI multifunction DAQ device with 16 analog inputs, 12-bit resolution and 200 kS/s sampling. It also provides eight digital I/O lines and two 24-bit counters.

ManufacturerNational Instruments
ModelPCI-6023E
Part Number777742-01 · 185415-01
Product TypeMultifunction data acquisition device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6023E

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog input16 channels, 12-bit resolution
Sampling rate200 kS/s
Digital I/O8 lines
CountersTwo 24-bit counters
I/O connector68-pin male SCSI-II type
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-6023E combines analog acquisition, digital I/O and counter functions in a PCI card. NI identifies laboratory automation, research, design verification and manufacturing test as relevant application areas.

Unlike the PCI-6024E and PCI-6025E covered by the same manual, the PCI-6023E has no analog output channels. Check the model-specific specifications when comparing these devices.

  • Software-selectable single-ended or differential analog input configuration.
  • Four bipolar input ranges with DC coupling.
  • Eight digital I/O lines alongside two counter/timers.
Verified specifications

Technical data

Verified product specifications.

Host interfacePCI
Analog input configuration16 single-ended or 8 differential channels
ADC resolution12 bits
Sampling rate200 kS/s
Analog input ranges±10 V, ±5 V, ±500 mV, ±50 mV
Analog input couplingDC
Digital I/O8 lines
Counters2 × 24-bit
I/O connector68-pin male SCSI-II type
