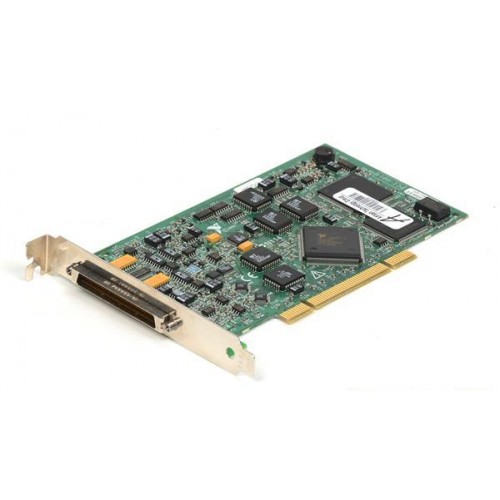

National Instruments PCI-6014 Multifunction data acquisition card
1 image: Click to enlarge
National Instruments · PCI

PCI-6014

The National Instruments PCI-6014 is a PCI multifunction DAQ card combining 16-bit analog input at up to 200 kS/s with two analog outputs, eight digital I/O lines, and two counter/timers.

ManufacturerNational Instruments
ModelPCI-6014
Part Number778627-01 · 188626-01
Product TypeMultifunction data acquisition card
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6014

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs16 single-ended or 8 differential
Input performance16-bit resolution; up to 200 kS/s
Analog outputs2 channels
Digital I/O8 lines
Counters2 counter/timers
