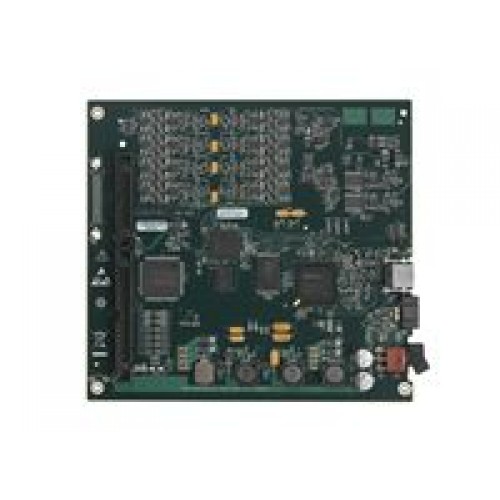

NI USB-6366 OEM
1 image: Click to enlarge
National Instruments · USB

NI USB-6366 OEM

The NI USB-6366 OEM is a board-only X Series USB data acquisition device with eight simultaneous-sampling analog inputs, two analog outputs, 24 digital I/O lines, and four counters/timers.

ManufacturerNational Instruments
ModelUSB-6366 OEM
Part Number782262-01
Product TypeBoard-only multifunction data acquisition device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6366 OEM

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog acquisition8 simultaneous inputs, 16-bit, 2 MS/s per channel
Analog outputs2 channels, 16-bit, up to 3.33 MS/s/ch
Digital and counter I/O24 digital I/O lines; four 32-bit counters/timers
OEM connections34-pin analog connector and 50-pin digital connector
